260 Meters DTH Pneumatic Drill Rigs For Industrial Rocky Area Water Well Drilling Work

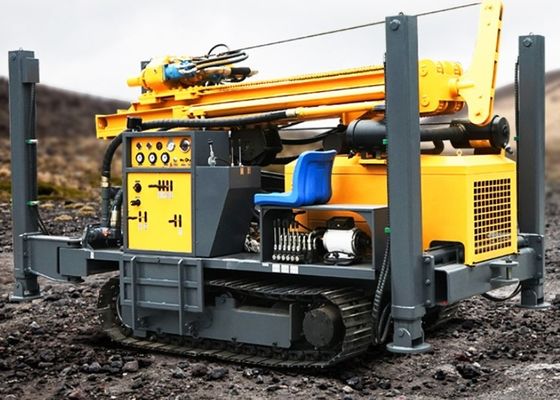

Large Image : 260 Meters DTH Pneumatic Drill Rigs For Industrial Rocky Area Water Well Drilling Work

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST 260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	25000-30000 USD
Packaging Details:	Wooden case (bare)
Delivery Time:	5-8days
Payment Terms:	T/T, Western Union
Supply Ability:	1000/month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Drilling Rig ST 260	Drilling Diameter:	105-260mm
After-sales Service Provided:	Water Well Drilling Rig	Warranty:	1 Year
Power Type:	Diesel	Color:	Yellow
Weight:	6T	Rotary Head Storke:	3.4m-6.0m
Rated Power:	55-132KW	Optional Accessories:	70KW
Weight Of The Rig:	4m×1.7m×2.2m	Air Pressure:	16-55m³/min
Highlight:	260 meters pneumatic drill rigs , rocky area pneumatic drill rigs , rocky area pneumatic water well drilling

260 Meters DTH Pneumatic Drill Rigs For Industrial Rocky Area Water Well Drilling Work

Product Specifications

Attribute	Value
Product Name	Pneumatic Drilling Rig ST 260
Drilling diameter	105-260mm
After-sales service	Water Well Drilling Rig
Warranty	1 Year
Power type	Diesel
Color	Yellow
Weight	6T
Rotary Head Stroke	3.4m-6.0m
Rated Power	55-132KW
Optional accessories	70KW
Weight of the rig	4m×1.7m×2.2m
Air pressure	16-55m³/min

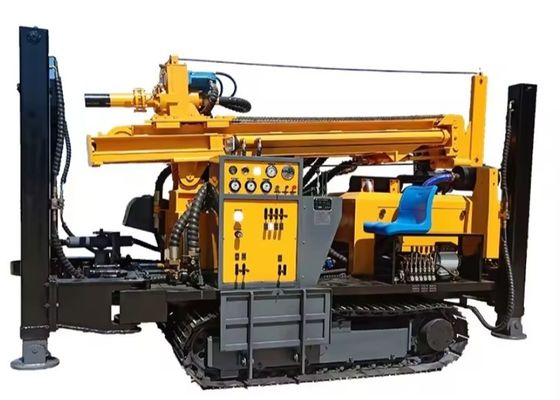

ST 260 Pneumatic Drilling Rig Overview

The ST 260 water well drilling rig machine operates effectively on various formations, with drilling diameters up to 245mm. Designed for drilling wells, irrigation systems, geothermal applications, and air holes, this rig excels in mountain and rocky terrain water engineering projects. Powered by a Yuchai diesel engine, it achieves drilling depths of 260 meters.

Technical Specifications

Hole Diameter	φ105-260mm
Drilling Depth	260 meters
Working pressure	1.7-3.0MPa
Air consumption	17-35m³/min
Length of rod	1.5m, 2m, 3m, 6m
Diameter of rod	φ76, φ89, φ102, φ114
Lifting power	24T
Rotation torque	8500-11000N.m
Rotation Speed	40-70r/min
Diesel Engine	Yuchai
Engine Power	85Kw/2200rpm
Travelling speed	0-2.5 Km/h
Climb capacity	30°
Weight	9000kgs
Dimension	5900x2000x2850mm
Application	Rock, Mud, Sand and other complex geological conditions
Drilling Method	Top drive hydraulic rotary and propulsion, DTH Drilling or Mud Pump Drilling
DTH Hammer	4",5",6",8" Drill hammer or CIR110, 130, 150,170

Key Features

Crawler-mounted design with advanced hydraulic technology
High torque hydraulic motor rotation with large bore hydraulic cylinder push
Multi-cylinder engine from renowned manufacturers powers the hydraulic system
Two-stage air filter and air compressor intake design extends engine life
Special pump set design simplifies maintenance and reduces costs
Centralized hydraulic control panel for convenient operation

Applications

The ST 260 pneumatic drilling rig is ideal for industrial and civil drilling projects, including geothermal applications. Its compact structure, rapid advancement, and exceptional mobility make it suitable for diverse terrains. Particularly effective for water intake projects in challenging environments.

Pebble Layer Drilling Methodology

Conventional Drilling Methods

Traditional techniques like diamond drilling, clean water flushing, pipe reaming, and mud circulation are commonly employed, along with rotary drilling, dry drilling, and percussion methods for core extraction. These approaches often encounter challenges in pebble layers, including heavy drilling loads, frequent accidents, low efficiency, and poor core quality.

Advanced Diamond Drilling Tool Method

Our specialized single acting double barrel diamond drilling tools combined with vegetable gum washing fluid represent the most advanced solution for hard, fragile formations. This process utilizes vegetable gum as washing fluid and diamond as the drilling tool, offering:
