Easy Movementg Geo-Survey Wheels Mounted Engineering Drilling Rig ST 50
ST 50 Engineering Drilling Rigs Description

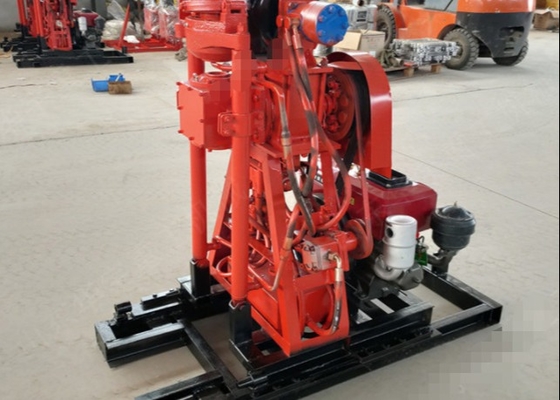

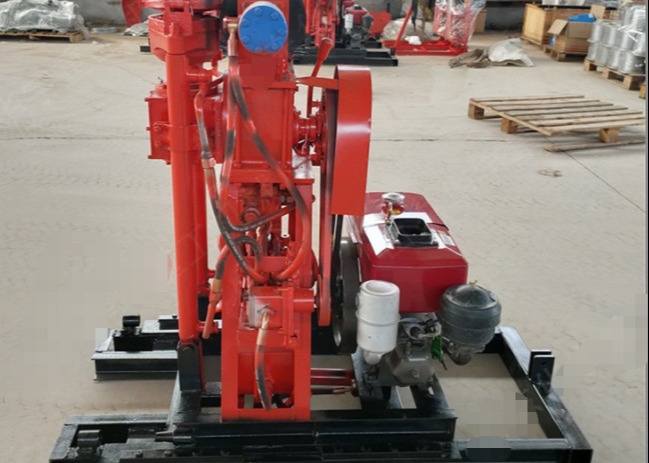

ST 50 Engineering Drilling rig is 50 meters Depth ,75mm hole diameter. Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed, large diameter of coring sample, etc.
ST 50 Engineering Drilling Rig Technical Data
| Max Open hole Diameter: |
75-108mm |
| End hole Diameter |
56-75mm |
| Main drill pipe |
50/1000mm |
| Max Depth: |
50m |
| Diesel engine |
8hp/5.8kw Diesel engine 2200r/min |
| Drilling pipe length: |
1000mm |
| Drilling angle |
90° |
| Drilling pipe diameter: |
42mm |
| Vertical shaft |
| Vertical shaft Speed |
285 570r/min |
| Vertical shaft Stroke |
1000mm |
| Lifting power |
300kgs |
| Additional pressure |
200kg |
| Mud pump |
| Model |
BW-50 |
| Flow |
50L/min |
| Max Pressure |
1.2MPA |
| Reciprocal time |
63times/min |
| Input-water pipe diameter |
55mm*2.5m |
| Output- high pressure water pipe diameter |
20mm*10m |
| Drilling machine overall dimension: |
1400*600*1600mm |
| Weight |
240kgs |
ST 50 Engineering Drilling Rigs Features:
The Type 50 rig is a high, medium and low speed rig with hydraulic feed. Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed, large diameter of coring sample, etc. It is the advanced portable hydraulic drilling machine in China. It is especially suitable for coring operations in mountainous areas, hills, rivers and other special difficult terrains, as well as engineering geological surveys for railways, hydropower, traffic, bridges, dam foundations, etc.; geological core drilling, physical exploration; small grouting holes, Drilling of blastholes; drilling of small wells.
Prevention method of drilling tool breaking of water well drilling rig
1. All pipes, joints and couplings shall be stored and used according to the new and old degree. Check the bending and wear of drilling tools by lifting and lowering drilling tools, correcting hole depth and relocation time.
2. It is forbidden to use a sledge hammer to knock the drill pipe and its joint when screwing and unloading the drilling tool.
3. When the rotary resistance is too large during reaming or drilling, it is not allowed to start the machine forcibly.
4. Master reasonable WOB, and do not blindly pressurize drilling.
Drilling Methods
Fixed rig, fixed hoist, wire rope on the winch with u-shaped ring connection, start the engine, to start the hoist, wire rope around the drum, the tower pieces in vertical shaft hole Wire rope into within tower sheave, u-shaped ring wire rope end through the rig up and down round connection is good, uplicate rod, four corner frame take out tower from vertical shaft hole and put well
