XY-1A Drilling Rig For Drilling 180 Meters Deep For Engineering Investigation And Domestic Irrigation Water Well

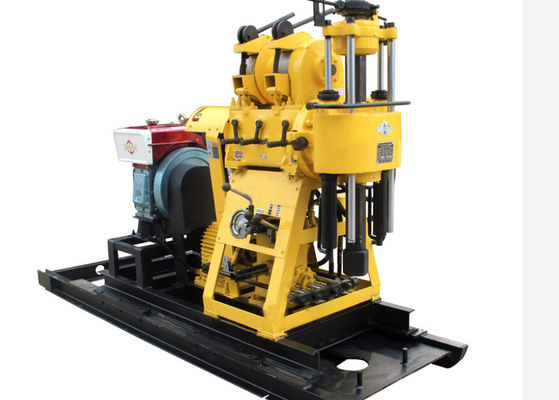

XY-1A Soil Test Drilling Machine Introduction
XY-1A Drilling rig for drilling 180 meters deep for engineering investigation and domestic irrigation water well
Congratulations on finding the source factory, we have our own processing workshop, support video factory audit, and can show you the factory environment and processing process, please feel free to contact me, we will give you the best price!
XY-1A Soil Test Drilling Machine Parameters
| |
| Drill |
Swivel Head |
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m |
Spindle stroke |
450kmm |
| Drill rod diameter |
42.50mm |
Spindle pull-down |
Max.15KN |
| Angle range |
90-75 |
Spindle lifting capacity |
Max. 25KN |
| Oil pump |
Water pump |
| Model |
YBC-12/125 |
Model |
Horizontal reciprocating single-acting piston pump |
| Rated pressure |
12.5Mpa |
Working pressure |
Max. 1.25Mpa |
| Flow speed |
8ml/r |
|
|
| Rated speed |
1500r/min |
|
|
| Hoist |
Power(diesel) |
| Max. lifting capacity |
15KN |
Model(diesel engine) |
1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power |
18KW |
| Drum diameter |
140mm |
Rated speed |
2200r/m |
| WEIGHT |
AROUND 600KG |
| SIZE |
1620*970*1560mm |

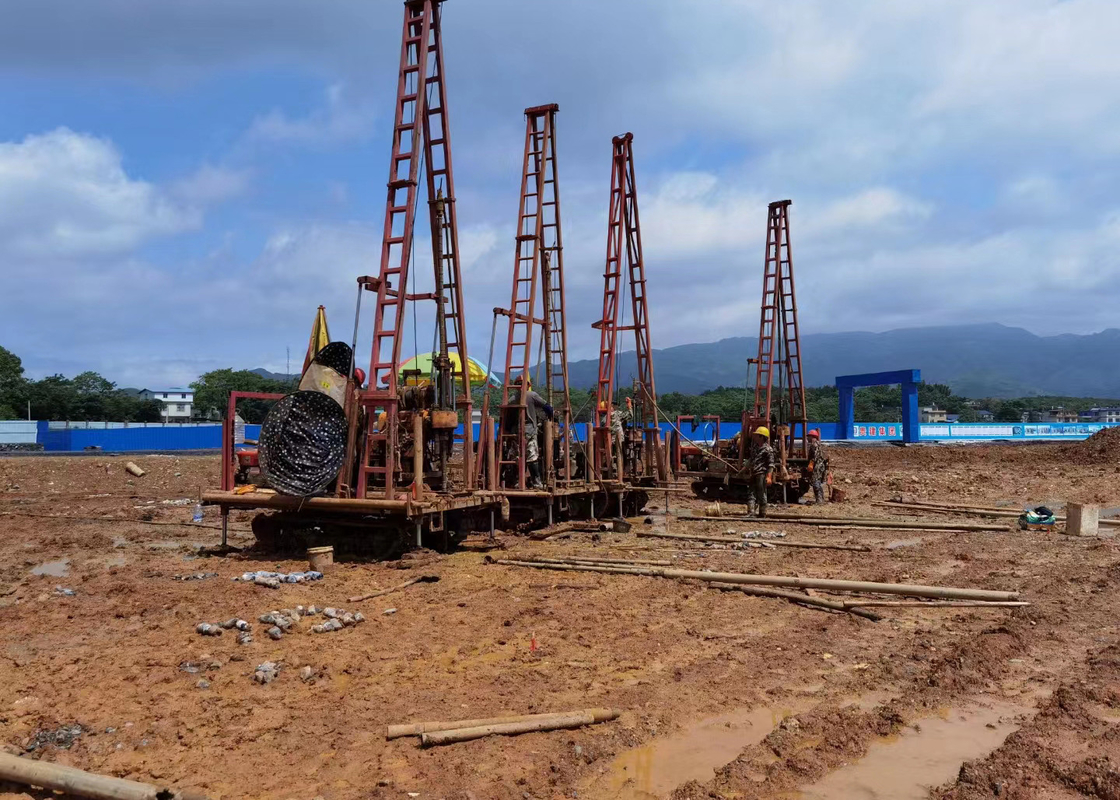

XY-1A Drilling Rig application
1.Air compressor or Mud Pump are both available to use for different stratums.
2. DTH Hammer tools are for hard layers.
3. Crawler mounted base, with four hydraulic high standing legs, convenient to load on truck, or working at rugged places.
4. Full hydraulic and top drive technology, labor saving, efficient working.
5. Inserted diesel engine, compact and can also use to heat water.
6. With complete hydraulic oil cooling system, ensuring stable working and good condition.
How should you find the right drill rig ?
Water well drilling machine
1,What's the depth and diameter do you want to drill ?
Then we can know which item water well drill rig is ok for you .
2,Pls show us your budget .
Then we can know which type water well drilling machine is ok for you.
Pls feel freely to contact our
