| Certification: | ISO9001 | Name: | Customized 150 Meters Investigation Engineering Soil Test Drilling Machinery |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Usage: | Water Well Drilling Rig,geological Exploration | Voltage: | 380V |
| Power(W): | 15KW | Weight: | 1200KGS |
| Other Name: | Drill Rig | Drill Rod Diameter: | 42, 50mm |
| High Light: | 150m engineering drill rig,crawler type engineering drill rig,150m engineering drilling rig |
||
150m Mobile Hydraulic Foundation Engineering Crawler Type Drill Rig

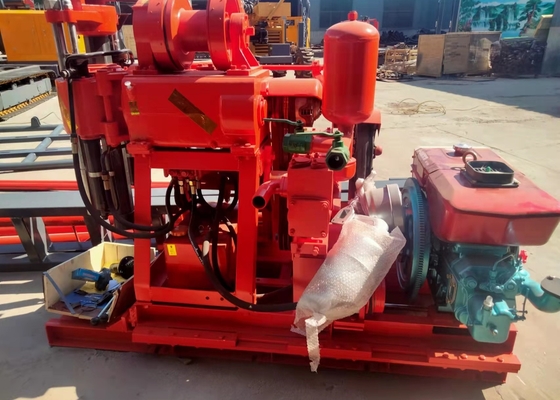

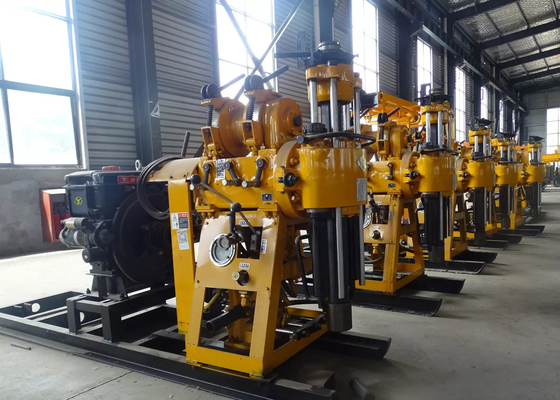

XY-1A Soil Test Drilling Machine Introduction
XY-1A hydraulic drilling rig is based on the original XY-1A drilling rig with the addition of a winch, a front and rear moving machine, and a tower frame, which is more practical and convenient. Compared with other similar products, the hydraulic high, medium and low speed drilling rig has the advantages of light weight, simple structure and fast drilling speed. , The advantages of large diameter of coring samples, etc., are currently the most advanced portable hydraulic drilling rigs in China, especially suitable for coring operations in special difficult terrains such as mountains, hills, and rivers.
XY-1A Soil Test Drilling Machine Parameters
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
XY-1A Drilling Rig Scope of application
1. With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
2. The rig is equipped with an upper spherical jaw holding mechanism and hexagonal kelly which can be replaced without shutdown, high efficiency, safe and reliable.
3. A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.
4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
Please check before using the water well drilling?
1. Check whether the oil quantity of each oil tank is sufficient and whether the oil quality is normal, and check whether the oil quantity of each reducer gear is sufficient and whether the oil quality is normal; Check whether there is oil leakage fault;
2. Check whether the main and auxiliary steel wire ropes are broken and whether their connections are intact and safe.
3. Check whether the extractor rotates flexibly and whether the internal grease is polluted
4. Check the steel structure for cracks, corrosion, desoldering and other damage.
The above is the preparation work to be done before using the water well drilling rig, which can try to avoid unnecessary accidents.
