Diamond Core Investigation Engineering Drilling Rig 150 Meters Equipment

Diamond Core Investigation Engineering Drilling Rig 150 Meters Equipment
Diamond Core Investigation Engineering Drilling Rig 150 Meters Equipment
video play

Large Image :  Diamond Core Investigation Engineering Drilling Rig 150 Meters Equipment

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7 days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets /month
Detailed Product Description
Product Name: Diamond Core Investigation 150 Meters Engineering Drilling Rig Equipment Power Type: Diesel / 13.3kw
Model Number: XY-1A Drill Depth: 150m
Usage: Water Well Color: Yellow,Yellow Or As Your Rquest
Application: Geological Exploration Drilling Angle: 90 ~75°
Drilling Diameter: Customized Dimensions: 1100*600*500mm, 600*650*2330mm,
Warranty: 12 Months After-sales Service Provided: Video Technical Support
High Light:

diamond core investigation engineering drilling rig

,

150 meters engineering drilling rig

,

150 meters engineering drill rig

Diamond Core Investigation 150 Meters Engineering Drilling Rig Equipment

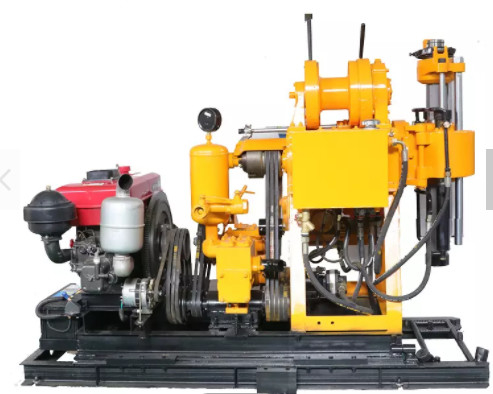

XY-1A Engineering Drilling Rig Introduction



XY-1A Core Drilling Rig is a light type machine at high speed with hydraulic feeding. XY-1A is designed on the basic of XY-1A.It is a kind of hydraulic feeding, high speed, high speed torque belt and portability with pump.



XY-1A Engineering Drilling Rig Technical Information



 XY-1 A Engineering Drilling Rig Specs



Engine

Drilling depth

m

150

Drilling hole diameter soil/rock

mm

150

Power

kw

13.2



Main parameters

Single lifting speed

m/s

0.41-1.64

Single lifting force

kg

2000

Rope capacity

m

27



Mud pump

Flow

L/min

95

Max. Pressure

Mpa

1.2

Reciprocate times

times/min

93


XY-1A Engineering Drilling Rig Advantages



1. It has an oil pressure feeding mechanism to improve the drilling efficiency and reduce the labor intensity of workers.

2. The drilling rig is equipped with a ball clamping mechanism and a hexagonal active drill pipe

3. Equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient to master the situation in the hole.

4. The handle is centralized and easy to operate.

5. The drilling rig has compact structure, small volume, light weight, easy disassembly and handling, and is suitable for working in plains and mountainous areas.



Core tube - Coring Tool



Single layer core pipe

The single pipe drilling tool has simple structure and convenient processing. It is a common coring tool for hard alloy and steel particle drilling. The flushing liquid in the single pipe drilling tool is sent into the core pipe by the drill pipe. The drill accessories that directly rush to the top of the core, and the impact and friction of the core caused by the rotation of the core pipe, are very easy to wear and tear the core, so they are only applicable to relatively complete and stable formations.





Why choose our drilling rigs?



1.keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.

2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.

3.This machine adopts national patent technology taper clutch and is with charactristics of strong transmission torque,easy to operation,free to maintenance.

4.Using 46x51 active drill rods which is with high rigitidy, strong delivery torque.



Diamond Core Investigation Engineering Drilling Rig 150 Meters Equipment 0

Diamond Core Investigation Engineering Drilling Rig 150 Meters Equipment 1

Diamond Core Investigation Engineering Drilling Rig 150 Meters Equipment 2

Diamond Core Investigation Engineering Drilling Rig 150 Meters Equipment 3
