Detailed Product Description
Product Name: XY-1A Engineering Drilling Rig Power Type: Diesel / 13.3kw
Model Number: XY-1A Drill Depth: 150m
Usage: Water Well Color: Yellow,Yellow Or As Your Rquest
Application: Geological Exploration Drilling Angle: 90 ~75°
Drilling Diameter: Customized Dimensions: 1100*600*500mm, 600*650*2330mm,
Warranty: 12 Months After-sales Service Provided: Video Technical Support
High Light:

vertical engineering drilling rig

,

150 meters geological drilling rig

,

sample collecting geological drilling rig

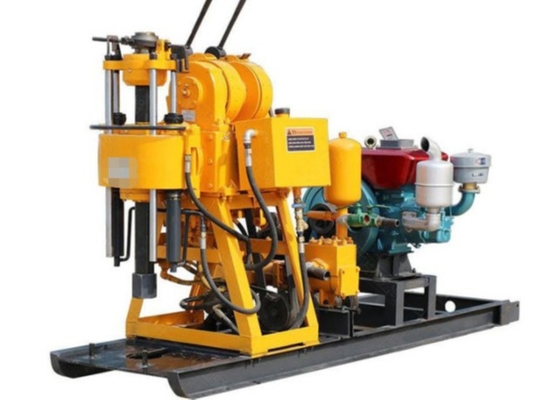

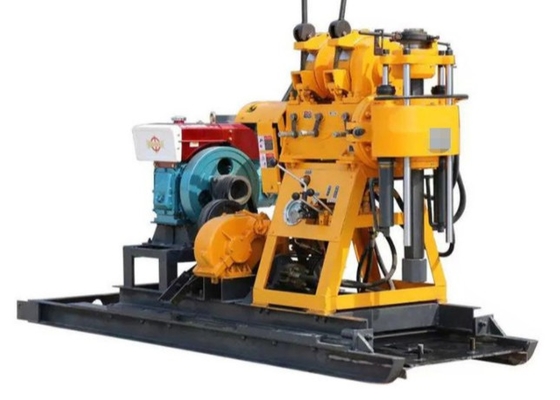

XY-1A 150 Meters Vertical Geological Portable Engineering Drilling Rig





XY-1A Engineering Drilling Rig Machine​ Introduction



Xy-1a drilling rig is a hydraulic feed portable drilling rig, 150 meters drilling depth ,150mm hole diameter ,which is suitable for engineering geological exploration of industrial and civil buildings, railways, hydropower, transportation, bridges, dam foundations and other buildings.



XY-1A Engineering Drilling Rig Machine​ Tech Data



Drill Swivel Head

Drilling depth



Max.150m

Spindle speed



1010,790,470,295,140(r/min)

Hole diameter



Max.150m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine ZS1105
Hoisting drum revolution

121,76,36(r/min)



Rated power 12.1KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



XY-1A Engineering Drilling Rig Advantages



a. five gears, and the highest speed can reach 1045r/min, improving drill efficiency

b. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.

d. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

e. Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.



XY-1A Engineering Drilling Rig Application & Scope



XY-1A drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees,earth temperature central air-conditioner,etc.XY-1 Series are spindle core geotechnical drilling rigs most perfectly suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. Typically, they are mainly used for:



How do you test soil before building?



Soil engineers bore holes in the soil and take samples. These samples are then tested in order to determine the suitability of the soil. Soil engineers can test the soil before construction, during the construction process and after construction is complete to ensure ongoing compatibility
