12 Months Warranty Engineering Drilling Rig 50 Meters Depth Light Portable

12 Months Warranty Engineering Drilling Rig 50 Meters Depth Light Portable
12 Months Warranty Engineering Drilling Rig 50 Meters Depth Light Portable 12 Months Warranty Engineering Drilling Rig 50 Meters Depth Light Portable

Large Image :  12 Months Warranty Engineering Drilling Rig 50 Meters Depth Light Portable

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST 50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: ST 50 Engineering Drilling Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 50m Dimension(L*W*H): 1180×680×1600mm
Drill Pipe Diameter: 42mm Condition: New
Weight: 200KG Hole Size Diameter: 73-108mm
Warranty: 1 Year Color: Red Yellow,Yellow Green
High Light:

50 meters depth engineering drilling rig

,

diesel power type engineering drilling rig

,

light portable engineering drilling rig

12 months Warranty 50 Meters Depth Light Portable Engineering Drilling Rig

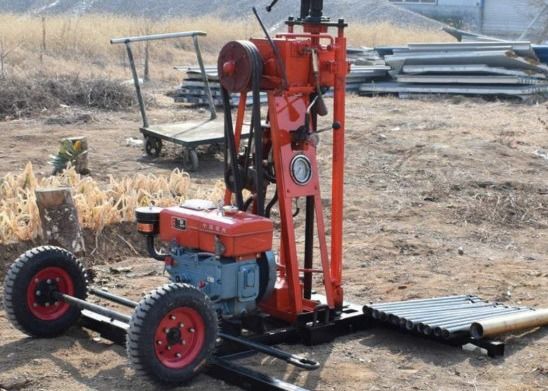

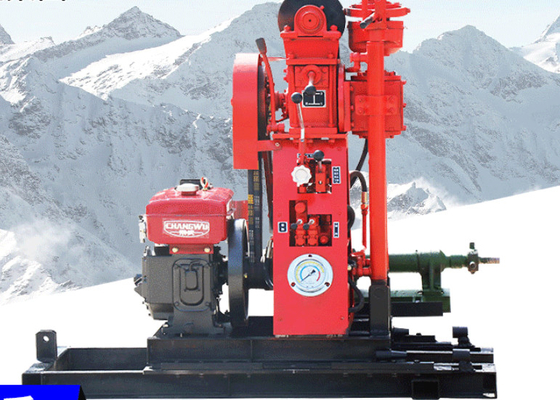

ST 50 Engineering Drilling Rig



ST50 series hydraulic drilling rig is a light weight drilling rig, widely used in general geological exploration of railway, road, bridge, dam and tall building base, geological core drilling, small grouting holes, blasting holes, civil wells, and earth central air conditioning wells, etc.



ST 50 Engineering Drilling Rig parameters



Type ST50 drilling rig
Drilling depth (m) The max. 50 meter
Hole size diameter 73-108mm
Drill pipe diameter 42mm
Vertical spindle speed 70-650
Reverse rotation speed 50-130
Power 5.7KW
Outsize 1180×680×1600mm

Weight

(including Gasoline engine )

208kg



ST 50 Engineering Drilling Rig Advantages



1, Fed by hydraulic cylinder, the drilling efficiency is higher, and it can save labor.

2,Equipped with national patented technology-taper clutch, it could achieve strong torque transmission, easy maintenance and free maintenance.

3,Vertical spindles are fixed by four groups of bearings to ensure that the rotator has enough rigid for gravel layer and other complex geological conditions.



ST 50 Drilling Rig Applications



1.SPT working

2.Diamond Core drilling

3.Soil sampling with auger drilling (SPT).

4.Micro piling

5.Water well drilling by carbide and rotary drilling



12 Months Warranty Engineering Drilling Rig 50 Meters Depth Light Portable 0

=12 Months Warranty Engineering Drilling Rig 50 Meters Depth Light Portable 1

12 Months Warranty Engineering Drilling Rig 50 Meters Depth Light Portable 2
