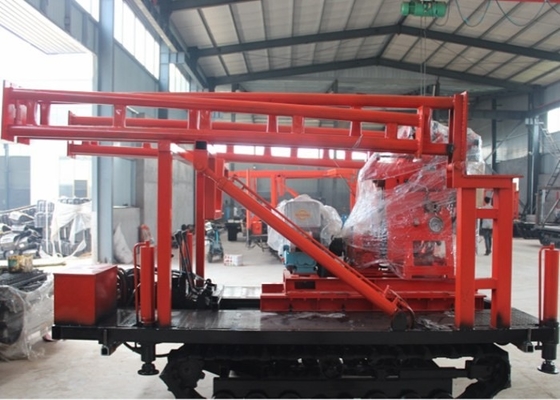

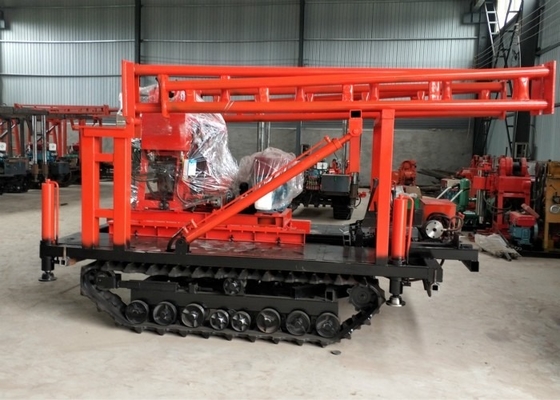

Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth

Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth
Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth

Large Image :  Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Name: GK 200 Geological Drilling Rig Machine Power Type: Diesel
Usage: Water Well Voltage: 380V
Power(W): 15KW Weight: 626KGS
Condition: New Equipment Size(L * B * H): 1730 * 860 * 1360 (mm)
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
Drilling Diameter: 75-325mm Mud Pump: BW-160
High Light:

200M Depth Geological Drilling Rig Machine

,

Diesel Geological Drilling Rig Machine

,

200M Depth Geological Drilling Machine

200 Meters Depth Coal Mining Core Exploration Geological Drilling Rig Machine





GK 200 Geological Drilling Rig Machine Information



Gk-200 drilling machine is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque. The drilling rig is light in weight, strong in decomposition, easy to move, and suitable for work in plain and mountainous areas.



GK 200 Geological Drilling Rig Technical Data



Drilling depth 200m
Drilling Diameter 91mm,110mm,130mm,150mm,300mm
Drilling rod diameter 50mm
Drilling Angle 70-90 degree
Dimensions(L×W×H) 1750×850×1300 (mm)
Weight 880kg/set
Spindle Speed 115, 230, 505, 790, 1010 r/min
Spindle stroke 450mm
Spindle Dia. Φ59mmx53mmx4350mm Kelly rod
Upward displacement speed of drilling vertical spindle 0.05m/s
Downward displacement speed of drilling vertical spindle 0.067m/s
Spindle pull-down max 15KN
Spindle lifting capacity max 25KN
Vertical maximum output torque 1.5KN.m



GK 200 Geological Drilling Rig Advantages

1. With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
2. The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without
shutdown, high efficiency, safe and reliable.
3. A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.
4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains


GK 200 Geological Drilling Rig Applications


1. Drillings for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey a
2. Diamond drill bit, alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structures.
3. When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum
of depth may not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 150 mm.



Courtyard Drilling Precautions



1. Consider whether the well depth is reasonable

We should first investigate whether there are cables, sewers and other facilities under the ground, and avoid unnecessary damage.

2. Convenience, health and other issues should be considered.

After drilling the well, find some charcoal and throw it into the well with a bag and press it at the bottom of the well to absorb foreign toxins. After having water, you can put a few small fish down, which is a good way to test the safety of water quality.

3. The well should not be too deep. It should be above the ground and should be blocked with bricks and stones. It is better to have a cover, so as to prevent dirt from falling in, make people feel safer and avoid unnecessary dangers.

Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth 0

Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth 1Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth 2

Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth 3Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth 4Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth 5Coal Mining Core Exploration Geological Drilling Rig Machine 200 Meters Depth 6
