50 Meters Engineering Personal Geological Drilling Rig Machine Portable

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

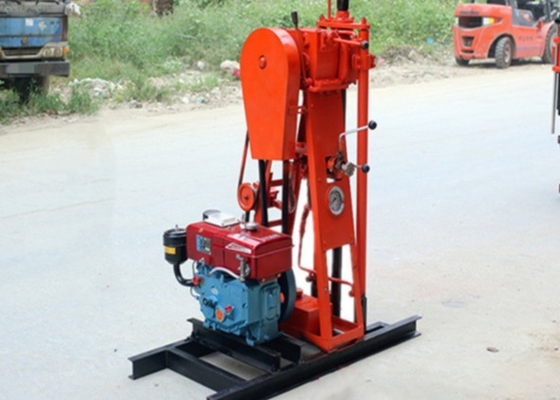

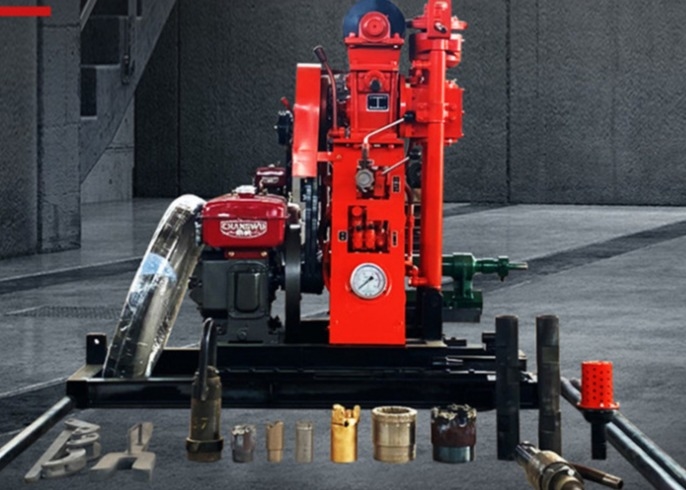

50 Meters Engineering Personal Geological Drilling Rig Machine Portable

50 Meters Engineering Personal Geological Drilling Rig Machine Portable
50 Meters Engineering Personal Geological Drilling Rig Machine Portable 50 Meters Engineering Personal Geological Drilling Rig Machine Portable

Large Image :  50 Meters Engineering Personal Geological Drilling Rig Machine Portable

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST 50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Product Name: ST 50 Geological Drilling Rig Machine Type: Core Drill Rig
Power Type: Diesel Weight:: 480kg
Usage: Water Well,railways, Core Drilling Drilling Depth: 50m
Dimension(L*W*H): 1180×680×1600mm Drill Pipe Diameter: 42mm
Condition: New Weight: 200KG
Hole Size Diameter: 73-108mm Support: Video Support
High Light:

Personal Geological Drilling Rig Machine

,

50 Meters Geological Drilling Machine

,

Personal Geological Drilling Machine

50 Meters Engineering Personal Geological Drilling Rig Machine Portable



ST 50 Geological Drilling Rig Machine For Exploration



ST 50 Geological Drilling Rig Machine Description

This is a small sampling drilling equipment suitable for plains, mountainous areas and areas with inconvenient transportation and energy. It is now widely used in railway, water conservancy and other construction projects, as well as geological core drilling .

Technical Information



Dimension(L*W*H)
1200*1290* 700
Weight
630KG
Warranty
1 Year
Marketing Type
Other
Machinery Test Report
Yes
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, Pump, Other, Engine
Key Selling Points
Competitive Price
Mobility
yes
Capacity of drum
40
Drill rod caliber
42
Supply water pressure
0.6-1.2



 Machine ​Features


1. Small and light, convenient for high altitude geological operations;
2. The hydraulic automatic feeding mechanism is adopted to improve the drilling efficiency and reduce the labor intensity of workers.
3. The vertical shaft box 4 sets ensure that the gyrator has sufficient rigidity to deal with complicated terrain conditions such as gravel layer and pebble layer;
4. It adopts national patent taper clutch, which has large transmission torque, convenient operation and maintenance-free.



Core Drilling Information



The principle of core drilling machine is basically the same, and the main components are drilling machine, drill pipe, drill bit, etc. The drill provides power to drive the drill pipe and drill bit to drill and obtain deep core samples

soil sampling method

1. Distribution: samples shall be taken according to the soil type and the distribution of crop varieties, and according to the different soil fertility. The sampling points are distributed in zigzag or snake shape, which should be as uniform and random as possible.

2. Determine the sampling position and depth: the sampling position and depth shall be determined according to the thickness of the cultivated layer. Generally, the sampling depth is 0-20cm



Soil Sampling Procedure



Divide the field into different homogeneous units based on the visual observation and farmer’s experience.

Remove the surface litter at the sampling spot.

Drive the auger to a plough depth of 15 cm and draw the soil sample.

Collect at least 10 to 15 samples from each sampling unit and place in a bucket or tray.

If auger is not available, make a ‘V’ shaped cut to a depth of 15 cm in the sampling spot using spade.

Remove thick slices of soil from top to bottom of exposed face of the ‘V’ shaped cut and place in a clean container.



50 Meters Engineering Personal Geological Drilling Rig Machine Portable 0

50 Meters Engineering Personal Geological Drilling Rig Machine Portable 1

50 Meters Engineering Personal Geological Drilling Rig Machine Portable 250 Meters Engineering Personal Geological Drilling Rig Machine Portable 3
