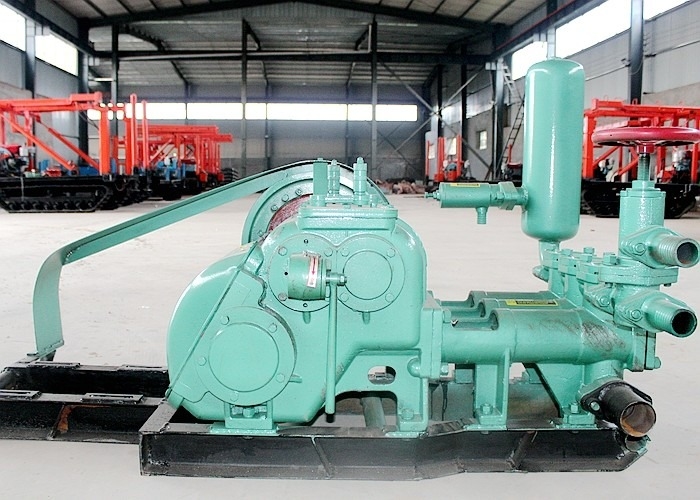

BW 250 Water Well Drilling Mud Pump Diesel Powered

Large Image : BW 250 Water Well Drilling Mud Pump Diesel Powered

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	BW 250

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	20000 sets per year

Contact Now

Detailed Product Description

Product Name:	BW 250 Water Well Hole Drilling Mud Pump,Reciprocating Piston Pump	Model:	BW 250
Brand:	Shitan	Structure:	Piston Pump
Application:	Water Well Drilling ,exploration	Weight:	300-500kg
Fuel:	Diesel	Material:	Stainless Steel
OEM:	Acceptable	Place Of Origin:	Hebei,China
After Sale Service:	Video Support	Warranty:	12 Month
Highlight:	Diesel Powered Piston Pump , Diesel Powered Drilling Mud Pump , Water Well Drilling Mud Pump

BW 250 Water Well Drilling Mud Pump Diesel Powered

Product Specifications

Product Name:

BW 250 Water Well Hole Drilling Mud Pump, Reciprocating Piston Pump

Model:

BW 250

Brand:

Shitan

Structure:

Piston Pump

Application:

Water well drilling, exploration

Weight:

300-500kg

Fuel:

Diesel

Material:

Stainless Steel

Acceptable

Place of origin:

Hebei, China

After sale service:

Video Support

Warranty:

12 month

Product Overview

The BW250 diesel-powered piston pump features two cylinders with different diameters and four gear shifts. With adjustable output and drilling depth, it is suitable for grouting cement slurry or pairing with 1500m drilling machines. Designed for flushing fluid drilling, it works effectively with both mud and clear water.

Technical Parameters

Model	BW150	BW160	BW250	BW320
Max. Flow rate	150L/Min	160L/Min	250L/Min	320L/Min
Max. pressure	7Mpa	10Mpa	6Mpa	8Mpa
Power	7.5KW	11KW	15KW	30KW
Inlet pipe diameter	51mm	51mm	76mm	76mm
Outlet pipe diameter	32mm	32mm	51mm	51mm
Weight	480kg	560kg	760kg	1000kg

Key Features

Equipped with drilling rigs for mud-based hole drilling operations
Pumps slurry to provide wall coating, lubricate drilling tools, and remove rock debris
Ideal for geological core drilling and prospecting up to 1500 meters
Diesel-powered for reliable operation in remote locations
Stainless steel construction for durability and corrosion resistance

Operation Guidelines

Fill suction pipe, bottom valve, and pump body with water before starting
Perform two piston reciprocations before starting with no load
Regularly test mud sand content (should not exceed 10%)
Operate at different speeds for at least 30 minutes per shift
Never change speed during operation - stop pump for shifting
Stop immediately for any abnormal noise, pressure changes, or temperature rise
Follow proper shutdown procedures including draining all mud and sand
Clean thoroughly and apply anti-rust measures for long-term storage

Frequently Asked Questions

Can I request customize service?

Yes, we can customize voltage, material, color, nameplate, and meet other special requests.

What is the advantage of your factory?

We provide accurate market sharing, reliable investment suggestions, proper machine selection, quick problem solving, and dependable after-sales service to minimize purchasing risks.

What service do you supply after order?

Your order receives full tracking including production monitoring, quality control, logistics coordination, and customs documentation preparation for a complete one-stop service.

How to solve the after-sales problem?

Send video or pictures of any issues. We provide solutions and take full responsibility for problems caused by our products, aiming for long-term customer satisfaction.

Product Images
