Jinzhou City Shitan Machinery Equipment CO. LTD.
Home ProductsDrilling Mud Pump

OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

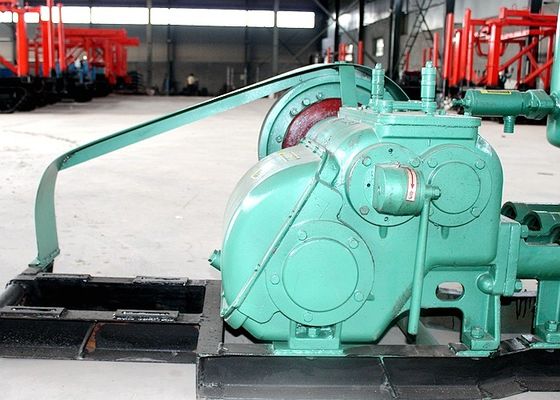

OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump

OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump

Large Image :  OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: BW 250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 sets per year
Detailed Product Description
Product Name: BW250 Drilling Mud Pump For Water Borehole Drilling , Reciprocating Piston Pump Model: BW 250
Brand: Shitan Structure: Piston Pump
Application: Water Well Drilling ,exploration Weight: 300-500kg
Fuel: Diesel Material: Stainless Steel
OEM: Acceptable Place Of Origin: Hebei,China
After Sale Service: Video Support Warranty: 12 Month
Highlight:

OEM Drilling Mud Pump

,

BW250 Drilling Mud Pump

,

OEM BW 250 Mud Pump

OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump
Product Specifications
Attribute Value
Product Name BW250 Drilling Mud Pump For Water Borehole Drilling, Reciprocating Piston Pump
Model BW 250
Brand Shitan
Structure Piston Pump
Application Water well drilling, exploration
Weight 300-500kg
Fuel Diesel
Material Stainless Steel
OEM Acceptable
Place of origin Hebei, China
After sale service Video Support
Warranty 12 month
Product Overview

The BW-250 (grouting pump) mud pump is a horizontal three-cylinder reciprocating single-acting piston pump featuring two cylinder diameters and four speeds. This versatile pump allows adjustment of displacement and hole depth according to specific requirements. Designed to work with 1500m drilling rigs, it can also be used for cement slurry filling applications.

Key Benefits: Energy efficient operation, flexible performance, durable construction, easy decomposition, and simple relocation.

Technical Parameters
Model BW250
Type Horizontal three cylinder ratio single acting reciprocating piston pump
Stroke (mm) 100
Cylinder diameter (mm) 80 65
Pump speed 200 116 72 42 200 116 72 42
Flow (l/min) 250 145 90 42 166 96 72 42
Pressure (Mpa) 2.5 4.5 6 6 4 6 7 7
Power (Kw) 15
Shape size (mm) 11560*995*650
Weight (kg) 650
Primary Applications

The BW-250 Mud Pump is designed to work with drilling rigs for mud-based hole drilling operations. During drilling, the pump circulates slurry to:

  • Provide wall coating for borehole stability
  • Lubricate drilling tools
  • Transport rock debris to the surface

Ideal for geological core drilling and prospecting operations with depths up to 1500 meters.

Special Capabilities: Effective transportation of high-viscosity fluids and media containing hard suspended particles or fibers. Performs reliably in conditions unsuitable for other pump types, with flow rate directly proportional to speed. Notable advantages include no eddy current formation during medium transport and insensitivity to medium viscosity.

Frequently Asked Questions
Q: Can I request customize service?

A: Yes, we offer customization of voltage, material, color, nameplate, and other special requirements.

Q: What are your factory advantages?

A: We provide accurate market analysis, reliable investment advice, proper equipment selection, quick problem resolution, dependable after-sales service, and minimized purchasing risks.

Q: What services do you provide after order?

A: Your order receives full tracking including production monitoring, professional quality control, efficient logistics coordination, and expert customs documentation preparation - a complete one-stop service.

Q: How are after-sales problems resolved?

A: Problems can be reported via video or pictures. We provide solutions promptly, and take full responsibility for issues caused by our products, aiming for complete satisfaction and long-term cooperation.

Product Images
OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump 0 OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump 1 OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump 2 OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump 3 OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump 4 OEM BW250 Drilling Mud Pump For Water Borehole Drilling Reciprocating Piston Pump 5
