Customized Folding Crawler Track Undercarriage For Mini Hydraulic Borewell Machine

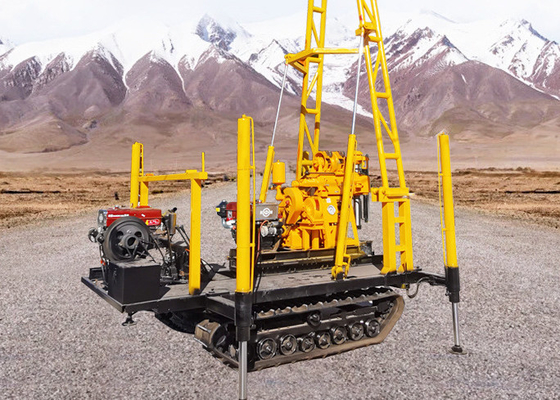

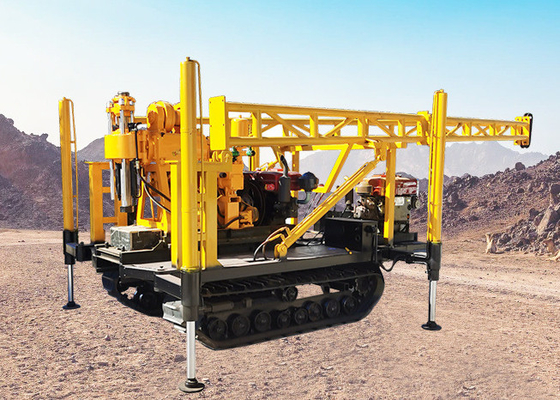

Large Image : Customized Folding Crawler Track Undercarriage For Mini Hydraulic Borewell Machine

Product Details:

Place of Origin:	Jinzhou ,China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	Shitan T1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	5 days after advance payment
Payment Terms:	T/T,Western Union
Supply Ability:	1000 Sets/month

Contact Now

Detailed Product Description

Product Name:	Customized Construction Platform Crawler Track Undercarriage For Drilling Rig Machinery	Loading Capacity:	Customized
Raw Material:	Alloy Steel	OEM:	Acceptable
Power:	Diesel Engine	Brand Name:	Shitan
Warranty:	12 Month	After Sale Service:	Video Support
Application:	Drilling Rigs	Speed:	Customized
Highlight:	Mechanical Crawler Track Undercarriage , Folding Crawler Track Undercarriage , Crawler Track Undercarriage OEM

Customized Folding Crawler Track Undercarriage For Drilling Rig Machinery

Product Name

Customized Construction Platform Crawler Track Undercarriage For Drilling Rig Machinery

Loading Capacity

Customized

Raw Material

Alloy Steel

Acceptable

Power

Diesel Engine

Brand Name

Shitan

Warranty

12 month

After sale service

Video Support

Application

Drilling Rigs

Speed

Customized

Product Description

The track shoe is fixed on the rail joint with high-strength bolts, and the chain rail joint and the rail are slightly pressed together with the chain rail sleeve in the way of interference fit. This vehicle uses a track with a pitch of 135mm. The track of the track is slightly sealed with a special rubber ring to prevent sand, water and other abrasive particles and corrosive media from entering the mating surface of the relative rotation.

Technical Specifications

Applicable Industries	Farms, Home Use, Construction works
Place of Origin	China
Warranty	1 Year
After-sales Service	Video technical support, Online support, Free spare parts
Material	Steel/Rubber
Condition	100% new
Transmission	Hydraulic Transmission
Travel Speed	0-5 Km/h
Color	Black Or Per to Customer
Application	Excavator/Drill rig/Mining equipment/Construction machinery

Track Classification

The tank track can be divided into two types according to its structure: metal pin hinge type and metal rubber hinge type. Metal rubber hinge can be divided into single pin type and double pin type.

The metal pin type crawler has simple structure, the pin and pin hole are directly dry friction, wear fast, and short service life. During tank maintenance, it is often found that the track pin is grinded into a "Tomatoes on sticks" shape. The track pin is also one of the wearing parts.

The metal rubber articulated track is vulcanized with multiple rubber collars on the metal pin and pressed into the track shoe pin hole. In this way, there is no direct friction between the track pin and the track shoe pin hole. When twisting, only the rubber collar produces elastic torsion, with low noise and long service life. Of course, the structure is also complex and the cost is high.

Product Applications

Rubber track chassis is mostly applicable to small light industry and small construction machinery industry. Light industry is generally agricultural machinery within one ton to four tons. The construction machinery industry is mainly used in the small drilling industry.

The range of use and service life of steel track and the selection of working conditions are relatively broader. It is composed of steel track, shoe wheel, guide wheel, roller, chassis and two traveling reducers (the traveling reducer is composed of motor, gearbox, brake and valve body). Generally, for example, the drilling rig is arranged on the chassis as a whole, and the walking speed of the crawler chassis can be adjusted by the control handle, which can make the whole machine realize convenient movement, turning, climbing, walking, etc.

Routine Maintenance

The machine shall be cleaned before the end of each shift to remove the gangue and other debris in the middle of the track.
Check and tighten loose track shoe bolts and connecting bolts of structural parts every shift, and replace damaged ones in time.
Check whether each pipe joint leaks oil and whether each hose is squeezed or worn.
Check the return oil filter every shift within one month after the new machine is used, and replace the filter element according to the situation. After one month, replace the filter element once a month.
Check the condition of hydraulic oil every shift. Observe the level of the liquid level gauge on the auxiliary oil tank and replenish the oil in time.
