Deep / Borehole Water Well Drilling RigTruck Mounted

Product Description:

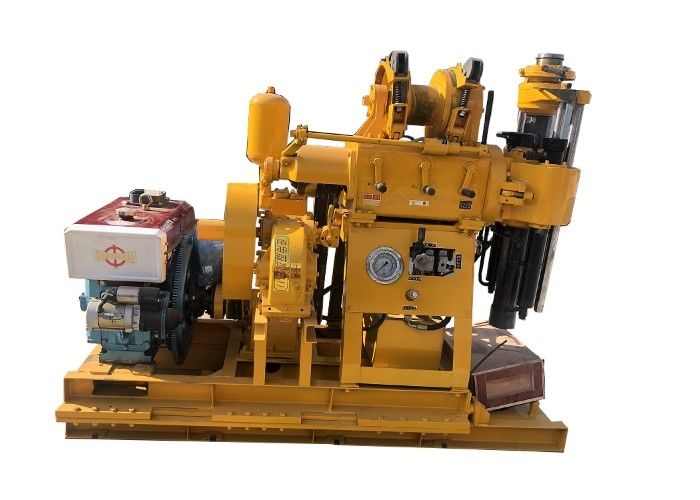

The GK200 drilling rig is a high-speed and lightweight drilling rig with hydraulic feed, mainly used for drilling holes in solid mineral deposits, engineering geological exploration, and inspection holes for various concrete structures. Diamond, alloy, and steel drill bits can be selected for drilling according to different geological formations.

When the final hole diameter is 75mm, the rated drilling depth is 200m, and the maximum depth shall not exceed 110% of each drilling depth. The rated opening diameter is 110mm, and the maximum allowable opening diameter is 300mm.

Features:

• Oil pressure feeding mechanism to improve drilling efficiency
• Hexagonal active drilling rod, implementing non-stop replacement
• Vertical shaft with octagonal structure, suitable for high torque transmission
• The bottom pressure gauge indicates pressure, making it easy to grasp the situation inside the hole
• Compact structure, small volume, light weight, strong decomposability, easy to relocate, suitable for work in plains or mountainous areas.
• Suitable for engineering geological survey of industrial and civil construction, railway,hydropower, transportation, bridge,dam foundation and other buildings.
• Customized to your specific needs. We offer a range of options, including different drilling depths and power supply options.

Support and Services:

Our Water Well Drilling Rig product comes with comprehensive technical support and services to ensure that your rig operates smoothly and efficiently. Our experienced technicians are available to provide installation, maintenance, and repair services for all components of the rig, including the drilling equipment, hydraulic system, and electrical system.
We also offer training services to help your crew operate the rig safely and effectively. Our training covers all aspects of rig operation, from set-up and drilling to maintenance and troubleshooting.
In addition, we provide technical documentation and manuals to support your rig operations. Our documentation includes detailed technical specifications, operating procedures, and troubleshooting guides.
If you encounter any issues with your Water Well Drilling Rig, our technical support team is available to provide prompt assistance and help resolve any problems you may encounter.
