Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

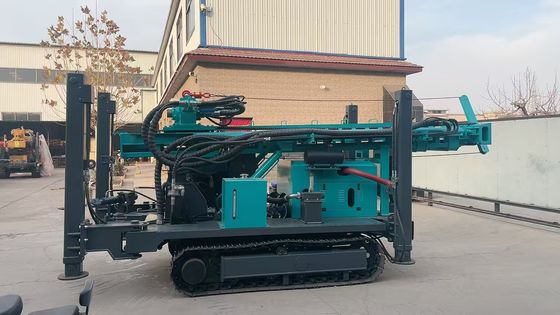

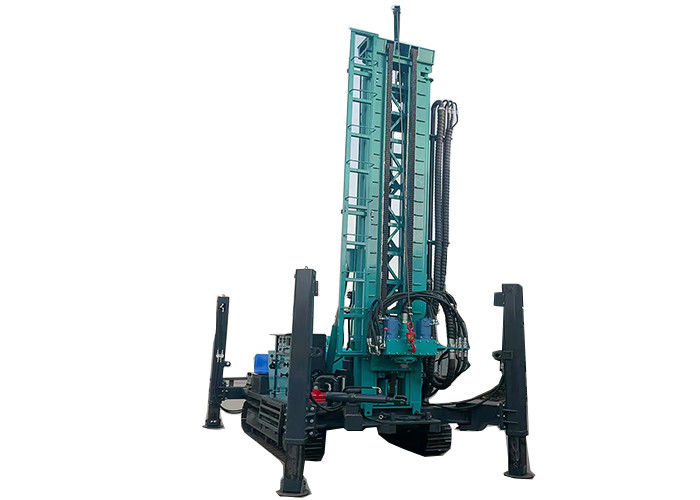

Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading

Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading
Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading
video play

Large Image :  Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading

Product Details:
Place of Origin: Jinzhou ,Hebei Province
Brand Name: Shitan
Certification: ISO
Model Number: ST350 trailer type drilling rig
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: customized quotation list
Packaging Details: wooden box
Delivery Time: 7 days after payment
Payment Terms: TT,Western union
Supply Ability: 1000 or 2000 set per year
Detailed Product Description
Maximum Turning Torque: 8900 Fast Forward Speed: 40m/min
Product Name: ST 350 Trailer Type Drilling Rig Lifting Force Of Small Auxiliary Winch: 1.2T
Overall Dimension: 5.2m×2m×2.35m Drilling Depth: 200-350m
Lifting Speed: 20m/min Climbing Degree: 30
Highlight:

High Legs Water Well Drilling Rig

,

Easy Loading Water Well Drilling Rig

,

Water Gas Water Well Drilling Rig

Product Description:

Water and air drilling rig is an efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells,agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in mountainous areas and rock formations. . The efficiency is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.

Features:

  • The drilling rig is mainly mechanically driven, and the others are hydraulically driven,
  • effectively using power. The overall power loss is small and the drilling cost is low.
  • The drilling rig has 2 reverse speeds for easy handling of accidents.
  • The drilling rig adopts a mechanical power head with a long-stroke double-speed mechanism, and the power head has a stroke of 3800mm, which is used to improve the drilling efficiency and reduce the occurrence of drill blocking and burning accidents.
  • The drilling rig uses double oil pumps for oil supply, a single pump is used when drilling, and a double pump is used for confluence when lifting and lowering the drill; the power loss is small and the auxiliary time is short.
  • The drilling rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
  • The tracked chassis is adopted, and the outrigger cylinder stroke is 1.5m, which can be loaded automatically, which is convenient for transportation.
  • The drilling rig reserves some functional interfaces in the hydraulic system, which can be expanded according to the technological requirements of different users
  • Tractor pneumatic water well drilling rigs can be equipped with tractor chassis of different horsepower, drilling tools of different specifications, air compressors, down-the-hole impactors and air ducts, etc. according to user needs. Various specifications are applicable.


Technical Parameters:

Product Name ST 350 Trailer Type Drilling Rig
Key Words Water Well Drilling Rig
Drilling Depth 200-350m
Drilling Diameter 105-305mm
Drilling Method Water Mud /Air Compressor
Engine Yuchai 91KW
Lifting force 24T
Lifting force of small auxiliary winch 1.2T
Footage efficiency 10-35m/h
Fast forward speed 40m/min

This Drilling Rig Equipment is perfect for Water Well Drilling Rig. It is a Drilling Equipment Set equipped with a Yuchai 91KW engine and has a lifting force of 24T. With a fast forward speed of 40m/min, it is sure to increase your drilling efficiency. The Homemade Drilling Rig comes with a lifting force of small auxiliary winch of 1.2T and has a footage efficiency of 10-35m/h.


Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading 0

Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading 1

Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading 2

Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading 3Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading 4

Water Gas Water Well Drilling Rig With High Legs Easy Loading / Unloading 5
