Mini Sampling Soil ST30 Testing Drilling Rig with Half spoon soil extractor

Large Image : Mini Sampling Soil ST30 Testing Drilling Rig with Half spoon soil extractor

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST-30

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden BoxProduct Description: The ST30 tracked hydraulic sampling drilling rig is a new - type, high - efficiency, and multifunctional sampling drilling rig. It has a compact structure, is small and flexible, has multiple steering modes, is flexible in
Delivery Time:	5-8 workday
Payment Terms:	T/T, Western Union
Supply Ability:	1000set

Contact Now

Detailed Product Description

Product Name:	ST30 Tracked Hydraulic Sampling Drilling Rig	Max Drilling Depth:	30meters
Drilling Diameter:	120mm	Rod Length:	1meter
Rod Diameter:	60mm	Moving Speed:	2km/h
Engine:	Air-cooled Single Cylinder 14ph	Drilling Method:	Hitting
SPT Wight:	63.5kg	Using:	Coring
Weight Of The Rig:	1.5T	Size:	28001001600mm
Highlight:	Mini Sampling Soil Drilling Rig , ST30 Testing Drilling Rig

Product Description:

A 30m-depth hydraulic sampling rig with 120mm hole diameter, perfect for coring and SPT testing. Powered by a diesel engine and mounted on tracks for rough terrain mobility. Lightweight (1T) yet robust for fieldwork.

Main paramete

Application Areas	Soil testing, geological exploration, mining, etc.
Power	diesel engine
Drilling method	Impact drill hammer
Drilling Rod Diameter	60mm
Drilling Hole Diameter	120mm
SPT wight	63.5kg
Wigh	1T
Size	28001001600mm
Using	Coring
tDrilling Depth	20-50m

Features:

High Mobility – Tracked chassis ensures stability and maneuverability on rough or uneven terrain.
SPT-Ready – Built-in 63.5kg hammer for Standard Penetration Testing (SPT), meeting geotechnical standards.
Diesel-Powered Reliability – No need for external power; operates efficiently in remote locations.

Packing and Shipping:

Coring Drilling Machine
Instruction Manual
Drill Bits/Drill pipe,SPT and others

Shipping:

Product will be shipped within 3-7 business days after order confirmation.
Shipping cost will be calculated based on the delivery address.
Delivery time may vary depending on the destination.
Tracking information will be provided once the product is shipped.

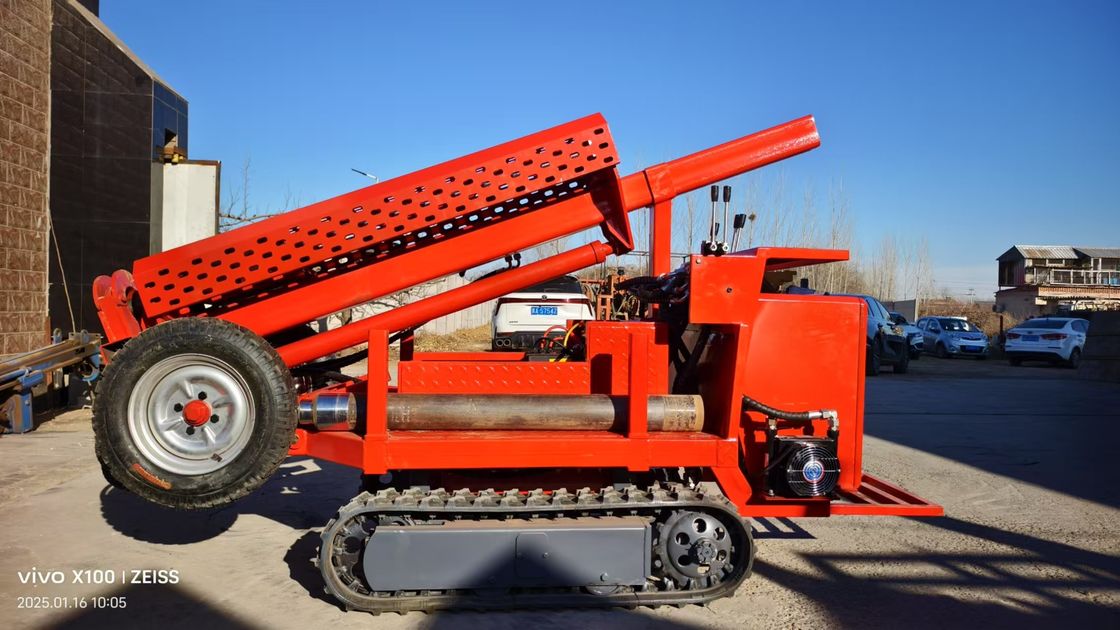

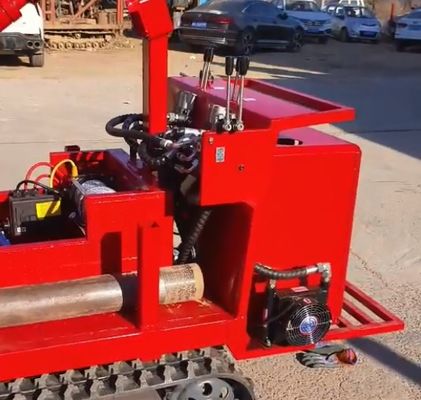

Mini Sampling Soil ST30 Testing Drilling Rig with Half spoon soil extractor 0

Mini Sampling Soil ST30 Testing Drilling Rig with Half spoon soil extractor 1

Mini Sampling Soil ST30 Testing Drilling Rig with Half spoon soil extractor 2

Mini Sampling Soil ST30 Testing Drilling Rig with Half spoon soil extractor 3

Mini Sampling Soil ST30 Testing Drilling Rig with Half spoon soil extractor 4

SHIPPING

Mini Sampling Soil ST30 Testing Drilling Rig with Half spoon soil extractor 5
