Product Description:

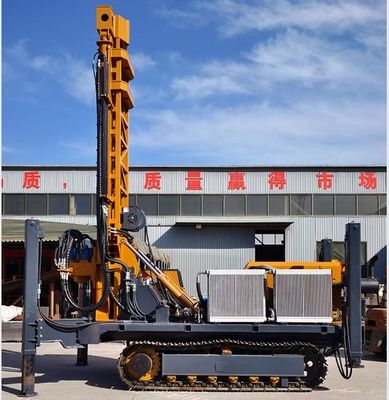

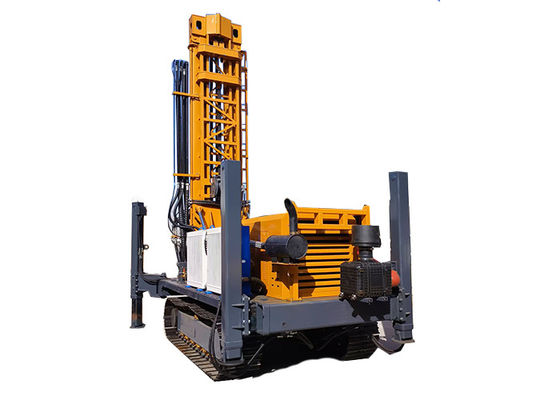

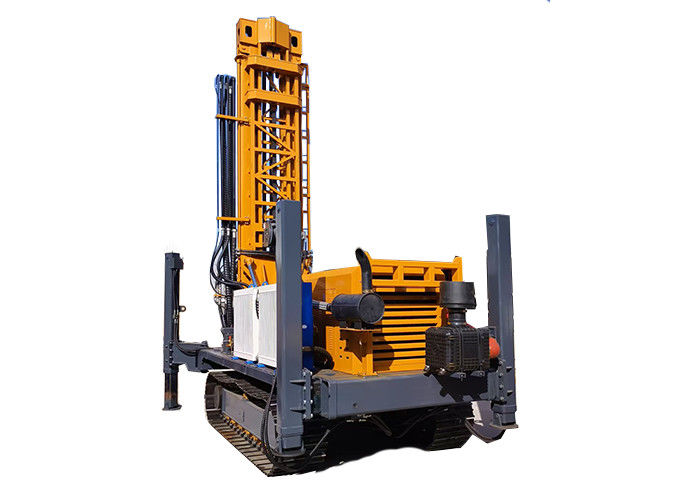

The ST1000 drilling rig is a robust drilling solution for geological exploration, water wells, and mining operations. Capable of drilling to 1000m depths with 105-500mm diameters, it handles both soft soils and hard rock formations efficiently.
Powered by a 242KW engine, the rig delivers consistent performance. Its top drive hydraulic system ensures smooth operation, supporting DTH hammer or mud drilling methods for optimal formation adaptation.
Main paramete
| Drilling Rig Name |
Pneumatic Drilling Rig (ST1000) |
| Drilling method |
Top drive hydraulic rotation and propulsion, DTH impactor or
Mud drilling
|
| Size |
6.2m×2.2m×2.5m |
| Drilling Rod Diameter |
102mm 114mm |
| Depth |
Max1000m |
| Drill pipe length |
3m/6m
|
| Power |
242 KW six cylinder engine |
| Hole Diameter |
105-500mm |
| Wight |
20T |
| Soil conditions |
Soil and rock layers |
Features:
1.Precision Drilling
Advanced hydraulic rotation system ensures accurate hole placement and straight drilling
2.Transportation Advantages
Compact footprint (6.2m×2.2m) allows easier site access and setup
3.Cost-Effective Operation
Energy-efficient design lowers fuel consumption without compromising power
4.Proven Reliability
Field-tested components deliver consistent performance in harsh environments
Packing and Shipping:
- 1000m Pneumatic Drill Rig
- Instruction Manual
- Drill Bits/Drill pipe,Tools and others
Shipping:
- Product will be shipped within 3-7 business days after order confirmation.
- Shipping cost will be calculated based on the delivery address.
- Delivery time may vary depending on the destination.
- Tracking information will be provided once the product is shipped.
