Dual Power Head Tractor Mounted Drilling Machine For Field Operations

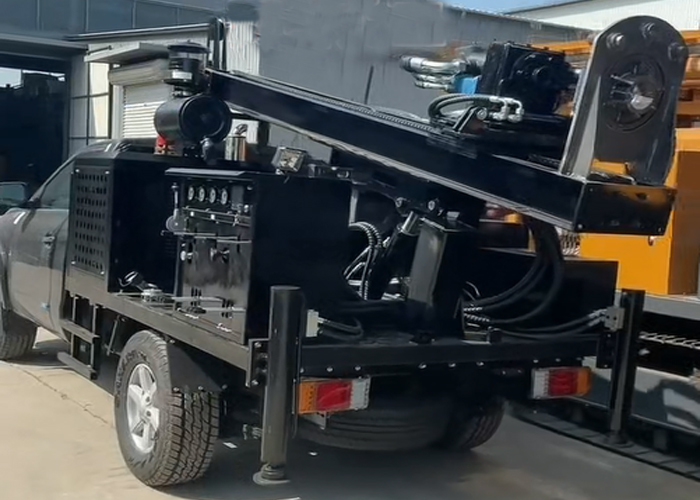

Large Image : Dual Power Head Tractor Mounted Drilling Machine For Field Operations

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	SHITAN
Certification:	CE/ISO
Model Number:	SHITAN-P150

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	wooden box
Delivery Time:	5-8 workday
Payment Terms:	T/T,Western Union
Supply Ability:	20000

Contact Now

Detailed Product Description

Drilling Depth:	Max 150m	Hole Diameter:	Max305mm
Drilling Method:	Auger,air,Mud Drilling	Pickup:	National III Or National VI
Warranty:	1Year	Dimensions:	4500x1800x2200mm
Sales Regions:	Europe, Africa, Southeast Asia And Other Countries And Regions	Weight:	Complete Machine 4.5T
Highlight:	tractor mounted drilling machine , dual power well drilling rig , water well drilling machine

Dual Power Head Tractor Mounted Drilling Machine For Field Operations

Product Specifications

Attribute	Value
Drilling depth	Max 150m
Hole Diameter	Max 305mm
Drilling Method	Auger, air, Mud Drilling
Pickup	National III or National VI
Warranty	1 Year
Dimensions	4500x1800x2200mm
Sales regions	Europe, Africa, Southeast Asia and other countries and regions
Weight	Complete machine 4.5T

Multifunctional Pickup Drilling Rig

This drilling rig is designed to be compact and lightweight, suitable not only for geological exploration but also for various scenarios such as water well drilling and pile foundation construction. Its modular design facilitates maintenance and upgrades, extending the lifespan of the equipment. The combination of high torque, high lifting force, and flexible mobility makes it a versatile solution for field operations and temporary construction sites.

Key Advantages

Strong durability: Key components are made of high-strength materials to extend their service life.
Energy saving and environmental protection: Optimized power system reduces fuel consumption and emissions.
Economic efficiency: Combines high performance with low cost for outstanding cost-effectiveness.
High power: 55KW diesel engine ensures high-intensity continuous operation.
Fast mobility: Integrated pickup truck chassis enables convenient and efficient transition.

Technical Parameters

Category	Technical Parameter	Operational Advantage
Drilling Capacity	0-200mm diameter range	Versatile for multiple borehole sizes
Drilling Capacity	150m max depth capability	Ideal for deep foundation and exploration
Power System	55kW turbocharged diesel	Fuel-efficient with high torque output
Power System	45° grade climbing ability	Excellent mobility on rough terrain
Mechanical Design	3900Nm max rotational torque	Powerful drilling in hard rock formations
Mechanical Design	Dual-speed rotation (85/170rpm)	Optimized speed control for varied geology
Structural Features	1.5m retractable mast height	Compact profile for confined worksites
Structural Features	4.5T integrated system weight	Easy transport and rapid deployment

Transportation & Shipping

Modes of transportation include but are not limited to:

Road transportation
Rail transportation
Water transportation

Ships within 5-7 business days
International shipping available
Shipping cost varies based on location

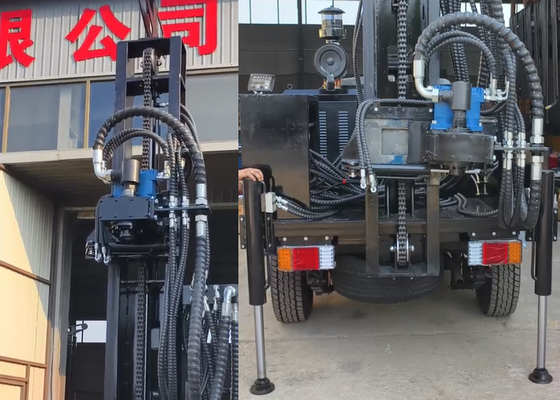

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
