100m 200m 300m Crawlerbig Drilling Machine With High Power Diesel Engine

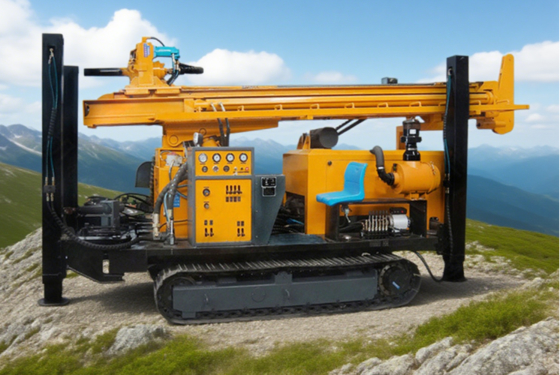

Large Image : 100m 200m 300m Crawlerbig Drilling Machine With High Power Diesel Engine

Product Details:

Place of Origin:	CHINA
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST-300

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Standard export wooden box
Delivery Time:	15-20days
Payment Terms:	T/T,Western Union
Supply Ability:	500sets/year

Contact Now

Detailed Product Description

Drilling Depth:	0-3000mm	Drill Diameter:	50mm, 75mm, 100mm, 200mm, 1000mm, 450mm, 800mm
Drill Rod:	76/89/102mm	Drilling Method:	Water Drill Or Air Drill
Machinery Test Report:	Provided	Key Selling Points:	Competitive Price
Power Type:	Diesel	Use Water Well:	Water Well
Highlight:	high power diesel drilling machine , water well drilling rig 300m , crawler mounted drilling rig

100m 200m 300m Crawlerbig Drilling Machine With High Power Diesel Engine

This high-performance drilling equipment integrates multiple intelligent control functions, precisely adjusting drilling parameters and achieving an impressive drilling efficiency of 10-35 meters per hour. Equipped with an 89mm reinforced drill pipe and a high-speed propulsion system, it significantly enhances continuous drilling operations.

The vehicle's hydraulic system has been precisely tuned, enabling fully automated control of travel, positioning, and drilling. A powerful 78kW Yuchai engine provides continuous power, while a travel speed of 2.5 km/h allows for greater flexibility and ease in site movement, significantly improving operational efficiency.

Applications

Geotechnical investigation and exploration
Prospecting and water well drilling
Construction projects including railways, roads, and ports
Bridge, water conservancy, and hydropower projects
Tunnel construction and industrial/civil building projects
Large diameter boring piles and small diameter diamond core deep hole drilling

Technical Specifications

Parameter Category	Specification Detail
Footage Efficiency	10 - 35 m/h
Lifting Speed	20 m/min
Fast Forward Speed	40 m/min
Rotation Speed	85 / 170 r/min
Walking Speed	2.5 km/h
Drill Pipe Length	6 meters
Working Air Pressure	1.25 - 3.5 Mpa
Air Consumption	16 - 55 m³/min

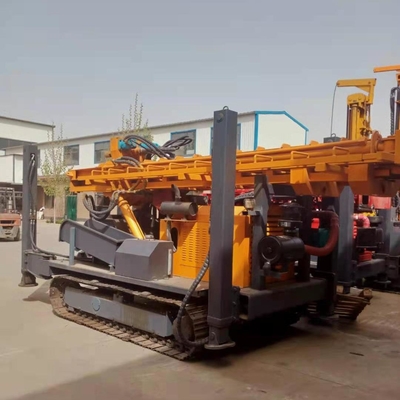

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
