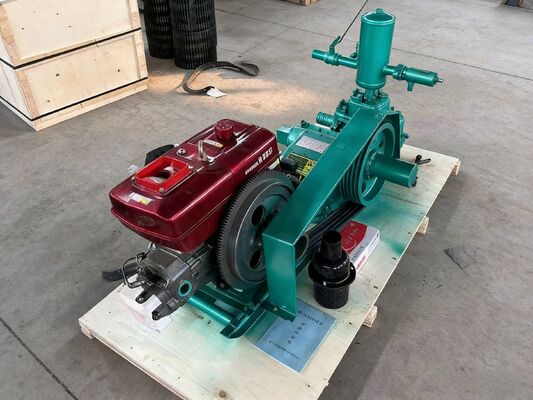

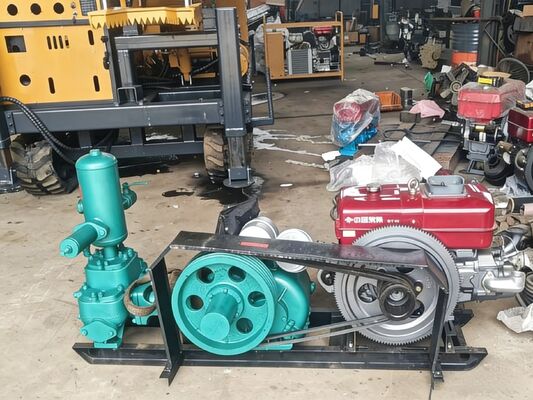

Double Cylinder BW200 Mud Pump for Water Well Drilling, Exploration & Grouting
High-performance BW200 horizontal double-acting mud pump, ideal for water well drilling, foundation grouting and geological projects. Featuring 2 cylinders with dual liner sizes (80/65mm), it delivers flexible displacement (200/125L/min) and high pressure (4/6MPa). Equipped with a 530r/min transmission shaft, 385mm B-type 5-groove pulley, and compatible with diesel/electric motors. Compact at 1050×630×820mm, 300KG weight, it ensures stable, wear-resistant operation. Factory-direct supply, OEM/ODM supported, fast delivery and competitive pricing.
BW200 Mud Pump Key Features
Dual-Purpose High Efficiency
- 2-cylinder double-acting design with 80/65mm liners delivers 200/125L/min flexible displacement and 4/6MPa dual high pressures
- 4MPa for general drilling, 6MPa for deep grouting applications
- Adapts to 80% of on-site working conditions, eliminating need for multiple pumps
Stable Power Transmission
- 530r/min transmission shaft + 385mm B-type 5-groove pulley ensure low-speed high-torque output
- Minimizes power loss and vibration during operation
- Compatible with both diesel and electric motors for flexible on-site power supply
- Far more stable than single-speed pumps
Low Maintenance & Easy Operation
- Modular structure with universal wear parts
- No complex professional tools required for daily maintenance
- One person can complete installation and debugging
- Significantly reduces labor costs and downtime
Technical Specifications
| Specification |
Details |
| Type |
BW200 |
| Core Components |
Pump, motor |
| Power |
Electric/diesel engine |
| Number of cylinders |
2 |
| Cylinder liner diameter (mm) |
80mm, 65mm |
| Transmission shaft speed (r/min) |
530 |
| Diameter of V-belt pulley (mm) |
385 |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
