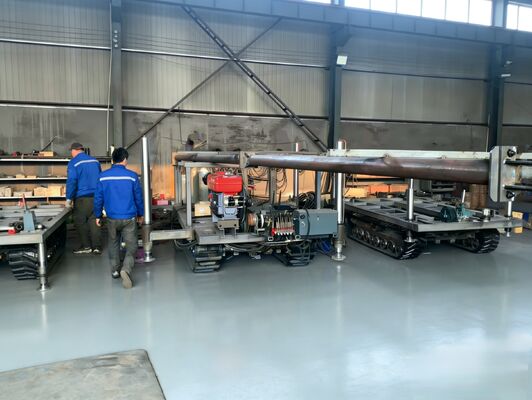

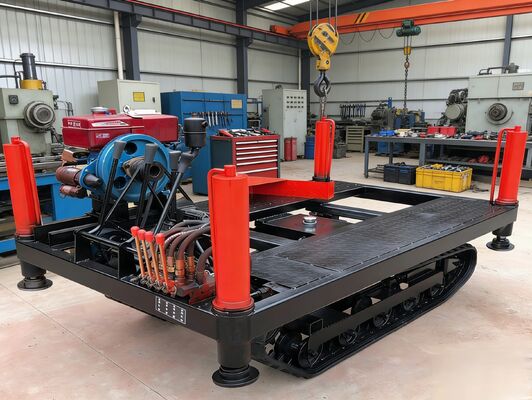

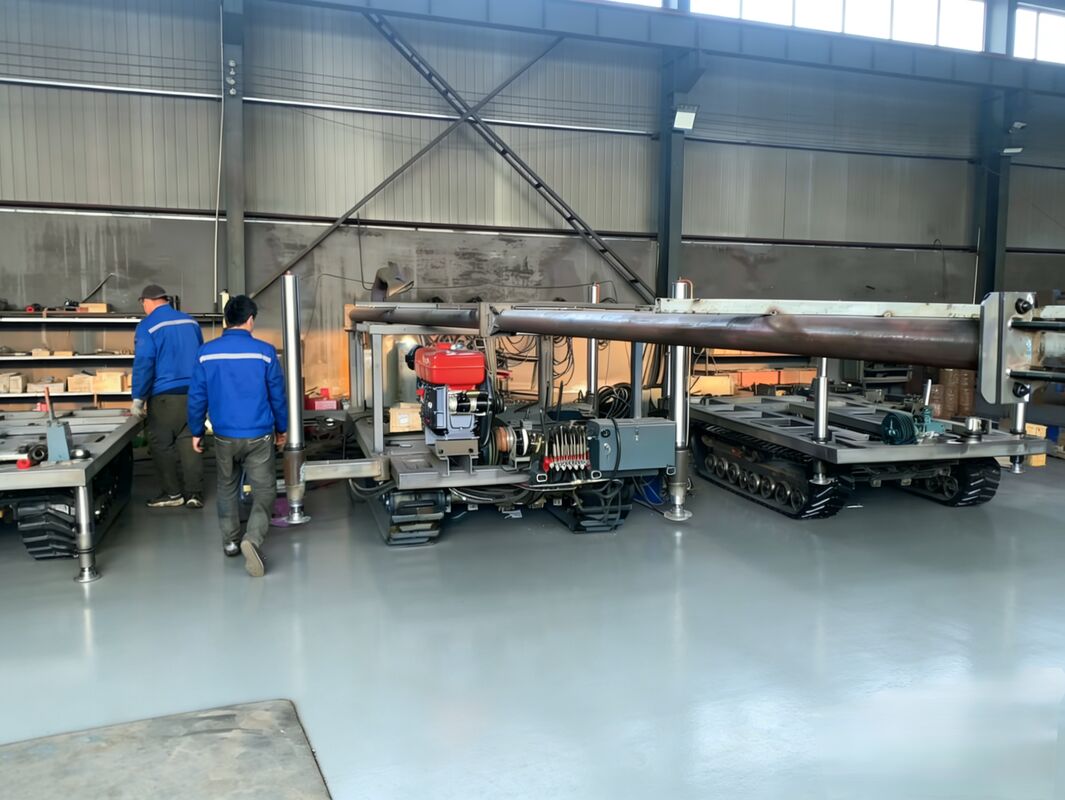

Lightweight Crawler Chassis with Cylinder Outriggers Rig Platforms
This lightweight crawler platform is designed for loading 50-150 type lightweight drilling rigs and other small machinery equipment. The system features a 1105 type single bar power unit driven by gearbox, capable of carrying 1-3 ton loads. Equipped with a hydraulic system that controls 4 foot support cylinders for platform height adjustment during operation, ensuring machine balance. Optional BW-160 type single bar slurry pumps and crawlers can share power from one machine.
Key Advantages
- Stability: Hydraulic outriggers enable one-click leveling and solid support, preventing shaking or sinking in wild terrain for precise drilling operations.
- Strength: Steel tracks and heavy-duty frame provide high load capacity and sufficient traction, performing excellently on mountains, mud, and gravel roads.
- Efficiency: Hydraulic drive ensures flexible steering and convenient transfer without disassembly, doubling work efficiency.
- Durability: Thickened steel and wear-resistant tracks make it impact-resistant and low-failure, saving long-term costs.
- Compatibility: Universal interfaces allow easy installation with exploration drilling rigs. Factory direct sales and reliable after-sales service provided.
Technical Specifications
| Type |
Lightweight Crawler Chassis |
| Drive System |
Hydraulic drive / Gearbox drive |
| Tower |
Optional |
| Power Type |
Diesel |
| Machinery Test Report |
Provided |
| Video Outgoing-Inspection |
Provided |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
