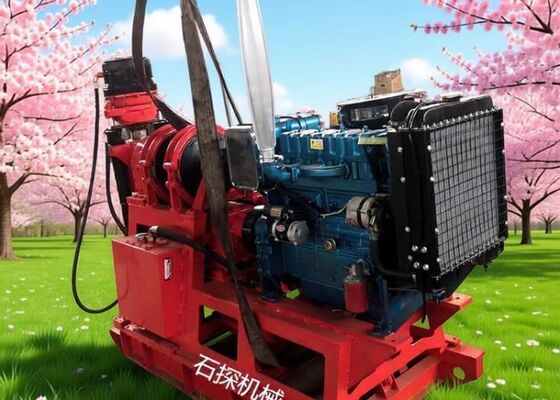

500 Meters Diesel Engine XY-2B Geological Drilling Rig Customized Diameter

Large Image : 500 Meters Diesel Engine XY-2B Geological Drilling Rig Customized Diameter

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO9001
Model Number:	XY-2B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7 days
Payment Terms:	T/T,Western Union
Supply Ability:	5000 sets per year

Contact Now

Detailed Product Description

Product Name:	XY-12B Geological Drilling Rig Machine	Drilling Depth:	500 Meters
Hole Diameter:	Customized	Weight:	1.5 MT
Voltage:	380v	Certification:	ISO9001
Power Type:	Diesel	Warranty:	1 Year
Application:	Water Well Drilling ,Geological Exploration	After-sale Service:	Video Support
Max Spindle Torque:	3330 Nm	Drilling Angle Range:	0-90°
Max Spindle Pull Force:	60 KN	Spindle Stroke:	560 Mm
Hoist Lift Capacity:	30 KN

500 Meters Diesel Engine XY-2B Geological Drilling Rig Customized Diameter

Product Overview

The XY-2B drill rig redefines efficiency and versatility in the drilling industry, combining robust performance with unparalleled portability. Derived from the proven XY-2 model, it features an expanded 96mm spindle through-hole diameter, enabling seamless compatibility with large-diameter drill rods for heavy-duty applications. With a maximum drilling depth of 530 meters using Φ42 drill rods, it excels in mineral exploration, geotechnical surveys, and water well drilling across diverse terrains.

Technical Specifications

Parameter	Details
Drilling Capacity	Φ73 rod: 100m; Φ60 rod: 320m; Φ50 rod: 380m; Φ42 rod: 530m
Spindle Speed	Forward: 57, 99, 157, 217, 270, 470, 742, 1024 r/min; Reverse: 45, 212 r/min
Max Spindle Torque	3330 Nm
Drilling Angle Range	0-90°
Max Spindle Pull Force	60 KN
Spindle Stroke	560 mm
Hoist Max Lift Capacity (Single Rope)	30 KN
Spindle Inner Diameter	Φ96 mm
Oil Pump	CBK1020/8 twin-gear pump
Power Unit	Electric motor: Y180L-4, 22kW; Diesel engine: 395K2, 19.85kW
Dimensions (LWH)	22209001880 mm
Weight (Excluding Power)	1200 kg

Key Features

Versatile Drilling Capability: Maximum drilling depth of 530 meters using Φ42 drill rods, suitable for various drilling tasks from geological exploration to water well drilling.
Enhanced Spindle Performance: Large spindle inner hole diameter of 96mm ensures stable torque transmission and compatibility with large-diameter drill rods for heavy-duty engineering projects.
Dual Power Options: Supports both 22kW electric motor and 19.85kW diesel engine, providing flexibility for different working environments.
Portable Design: Weighing only 1200kg (excluding power unit), it can be disassembled into multiple components for convenient transportation, especially suitable for challenging terrains.
Precise Operation: Features 8 forward spindle speeds (57-1024 r/min) and 2 reverse speeds (45, 212 r/min) with hydraulic feed system for adjustable pressure and speed control.

Applications

Geological Exploration: Core drilling for mineral resource exploration and geological analysis
Water Well Drilling: Efficient drilling for domestic, agricultural, and industrial water wells in complex geological formations
Engineering Construction: Foundation pile drilling and slope stability investigation for hydropower, transportation, and building projects
Environmental Monitoring: Soil and groundwater sampling for environmental assessment and remediation projects

Company Capabilities

We are a professional drilling machinery manufacturer with extensive industry experience and advanced production facilities.

Quality Assurance: Strict quality control procedures from raw material selection to final assembly, meeting international standards
Customization Service: Tailored solutions based on specific project requirements, including power unit selection and accessory customization
After-sales Support: Professional technical support, on-site maintenance, and spare parts supply to ensure smooth drilling operations

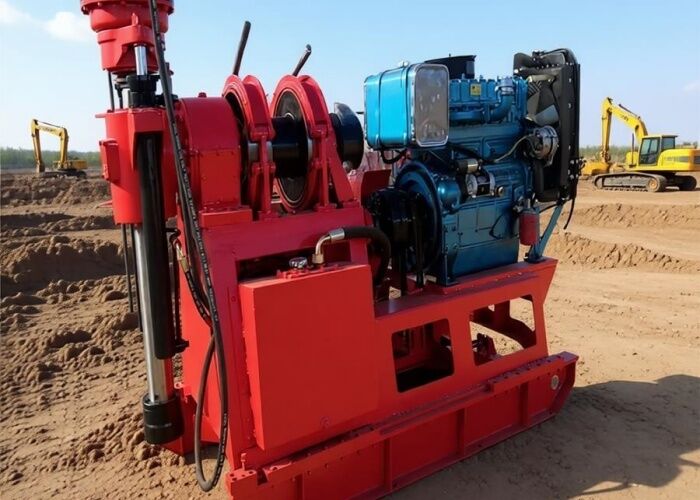

Product Gallery
