300-500 Meters Depth Rotary Drilling Machine for Soil Investigation Mining

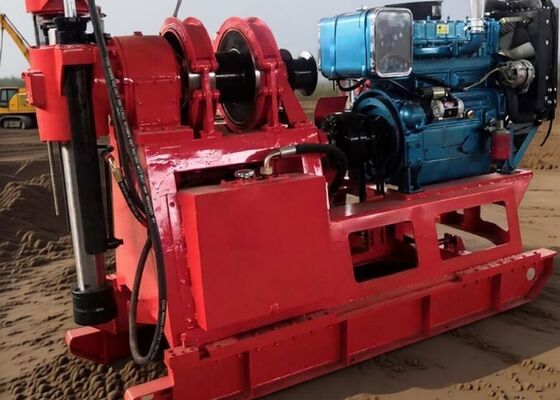

Large Image : 300-500 Meters Depth Rotary Drilling Machine for Soil Investigation Mining

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO9001
Model Number:	XY-2B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7 days
Payment Terms:	T/T,Western Union
Supply Ability:	5000 sets per year

Contact Now

Detailed Product Description

Product Name:	XY-2B Geological Drilling Rig Machine	Drilling Depth:	500 Meters
Hole Diameter:	Customized	Weight:	1.5 MT
Voltage:	380v	Certification:	ISO9001
Power Type:	Diesel	Warranty:	1 Year
Application:	Water Well Drilling ,Geological Exploration	After-sale Service:	Video Support
Max Spindle Torque:	3330 Nm	Drilling Angle Range:	0-90°
Max Spindle Pull Force:	60 KN	Spindle Stroke:	560 Mm
Hoist Lift Capacity:	30 KN
Highlight:	300-500 meters depth drilling machine , rotary drilling machine for soil investigation , geological drilling rig for mining

300-500 Meters Depth Rotary Drilling Machine for Soil Investigation Mining

Product Overview

The XY-2B Geological Drilling Rig, derived from the proven XY-2 model, features a 96mm spindle through-hole diameter, making it ideal for core sampling, water well drilling, and foundation projects. With a maximum drilling depth of 530 meters and 8 forward speeds, it handles complex terrains with ease. Its compact design (2220*900*1880mm) and 1200kg weight enable easy transportation, while the 22kW motor ensures high efficiency. Equipped with dual-gear pumps and hydraulic chuck, it reduces operational risks and boosts productivity, making it a top choice for mining, construction, and geotechnical engineering worldwide.

Technical Specifications

Parameter	Details
Drilling Capacity	Φ73 rod: 100m; Φ60 rod: 320m; Φ50 rod: 380m; Φ42 rod: 530m
Spindle Speed (r/min)	Forward: 57, 99, 157, 217, 270, 470, 742, 1024 Reverse: 45, 212
Max Spindle Torque	3330 Nm
Drilling Angle Range	0–90° (fully adjustable)
Max Spindle Pull Force	60 kN
Spindle Stroke	560 mm
Hoist Capacity (Single Rope)	30 kN
Spindle Inner Diameter	Φ96 mm
Oil Pump	CBK1020/8 twin-gear pump
Power Unit	Electric: Y180L-4, 22kW Diesel: 395K2, 19.85kW
Dimensions (LWH)	22209001880 mm
Weight (Excl. Power)	1200 kg

Key Features

Weighing only 1200kg (excluding power unit), the drill rig features a detachable structure that can be split into multiple lightweight components. This innovative design solves the transportation problem in mountainous areas, plateaus and other challenging terrains, allowing easy loading, unloading and transfer without the need for large transport vehicles, greatly reducing transportation costs and improving work efficiency.

Applications

Geological Exploration: Core drilling for mineral resource exploration and geological analysis
Water Well Drilling: Efficient drilling for domestic, agricultural, and industrial water wells in complex geological formations
Engineering Construction: Foundation pile drilling and slope stability investigation for hydropower, transportation, and building projects
Environmental Monitoring: Soil and groundwater sampling for environmental assessment and remediation projects

Company Capabilities

We are a professional drilling machinery manufacturer with extensive industry experience and advanced production facilities.

Quality Assurance: Strict quality control procedures from raw material selection to final assembly, meeting international standards
Customization Service: Tailored solutions based on specific project requirements, including power unit selection and accessory customization
After-sales Support: Professional technical support, on-site maintenance, and spare parts supply to ensure smooth drilling operations

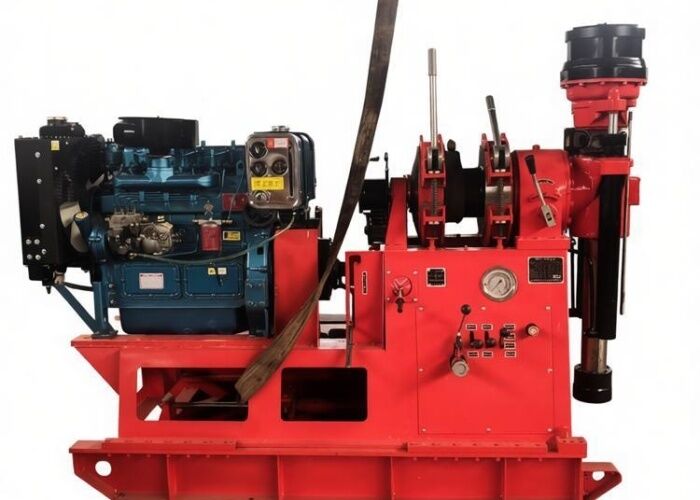

Product Gallery
