22 HP Diesel Engined Drilling Rig Ideal for Soil Testing and Foundation Investigation

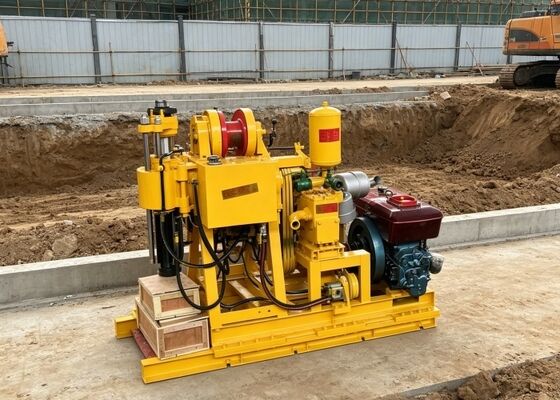

Large Image : 22 HP Diesel Engined Drilling Rig Ideal for Soil Testing and Foundation Investigation

Product Details:

Place of Origin:	Jinzhou ,China
Brand Name:	Shitan
Certification:	ISO
Model Number:	GK 200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	wooden box
Delivery Time:	5-7 working days
Payment Terms:	T/T,Western Union
Supply Ability:	5000 sets per year

Contact Now

Detailed Product Description

Product Name:	GK 200 Engineering Drilling Rig Machine	Hole Depth:	200m
Pipe Dia:	50 MM	Drilling Dia:	75-300mm
Applications:	Mining, Construction, Geotechnical Investigations	Feed Force:	220KN
Warranty:	12 Months	Net Weight:	600kg
Diameter:	Customized	Material:	Steel

22 HP Diesel Engined Drilling Rig Ideal for Soil Testing and Foundation Investigation

Product Overview

GK200 engineering drill rig supports fully personalized configuration solutions, with wheel assemblies available via OEM customization to match your unique operational demands and maximize drilling efficiency. This rig comes equipped with an integrated mud pump as standard, and is also compatible with the BW 160 mud pump, delivering outstanding adaptability across diverse drilling construction scenarios.

Key Features

Product Title: GK200 Geological Engineering Core Drilling Rig
Guarantee Period: 12-month full manufacturer warranty
Customizable Color Schemes: Bright yellow, industrial blue, classic red
Power Unit: Heavy-duty diesel power engine
Main Build Material: Robust all-steel framework structure
Product Classification Tags: Geological exploration drill rig, core sampling drilling equipment, geotechnical investigation drilling machine

Technical Specifications

Parameter	Specification
Product Name	GK 200 Engineering Drilling Rig Machine
Drilling Depth	200 Meters
Drilling Hole Diameter	200mm
Drilling Rod Diameter	50mm
Material	Steel
Mud Pump	Own Pump or BW 160 Mud Pump
Wheels OEM	Optional

Applications

Engineered for premium core drilling performance, the GK 200 engineering drill rig can bore holes up to 200 mm in diameter. It stands out as a perfect workhorse for mineral prospecting core retrieval, geological mapping and environmental monitoring drilling tasks.

Boasting a compact, mobile build, this rig enables geotechnical probing even in off-grid, hard-to-reach sites. Packaged in sturdy wooden crates for seamless transit, it features rapid assembly to streamline soil sampling, ground surveys and all kinds of exploratory drilling projects.

Support & Services

Our comprehensive technical support includes installation, commissioning, operator training, regular maintenance, repair services, and spare parts supply to ensure optimal performance, safety, and reliability of your drilling rig.

Packaging & Shipping

The drilling rig is packaged in sturdy wooden crates with securely packed components and included documentation. Shipping via reliable carriers includes tracking and cost calculation based on destination and package weight.
