| Model Number: | GY300 | Drill Pipe Length: | 4.2m |
|---|---|---|---|
| Usage: | Geology And Mineral Exploration | Drilling Methold: | Mud Drilling |
| Max Spindle Speed: | 30-1050r/min | Machine Name: | Borehole Drilling Rig For Small Grouting Hole Winch |
| Power Type: | Diesel | Type: | Core Drilling Rig |
| Highlight: | rock core drilling machine,geological drilling machine |
||
GY300m Borehole Drilling Rig For Small Grouting Hole Winch
Application

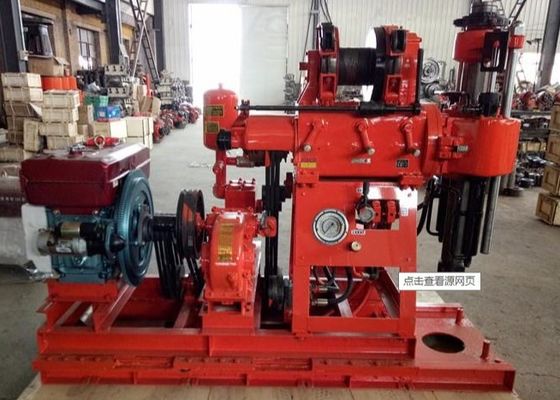

Gy-300 drilling rig is a medium and shallow hole core drilling rig. It is not only suitable for large and small caliber core drilling based on alloy and diamond, but also for engineering geological survey and engineering construction in construction engineering, hydro power engineering, highway, railway, port and other fields. Its appearance is as attached photo
Technical Specification
1,Drilling Capacity | ||||
Core Drilling | ||||
| Drill pipe type | Specs | Drilling Depth | ||
| Domestic pipe | Internally thickened drill pipe | 42mm | 480m | |
| 50mm | 350m | |||
| 60mm | 250m | |||
| Wire-line coring drill pipe | 55.5mm | 400m | ||
| 71mm | 290m | |||
| 89mm | 230m | |||
| DCDMA (Diamond core drill Manufacturers Association) | Wire-line coring drill pipe | | 440m | |
| 290m | |||
| 195m | |||
| 135m | |||
| 2,Drill angle | 0°~360° | |||
| 3.Engine | Model | Power | Speed | Weight |
| Electric Engine | Y180L-4 | 22KW | 1470 r/min | 190KG |
| Diesel Engine | 4L68 | 24KW | 1500 r/min | 215KG |
| 4.Gyrator | ||||
| Type: double cylinder hydraulic feeding machine rotary vertical shaft through | ||||
| hole diameter | 80 | |||
| Vertical shaft speed | ||||
| Forward rotation (R / min) | 58 101 160 221 234 406 640 885 | |||
| Reverse rotation (R / min) | 46 183 | |||
| Maximum torque of vertical shaft | 3000NM | |||
| Vertical shaft stroke | 600MM | |||
| maximum lifting capacity of vertical shaft | 60KN | |||
| maximum pressurization of vertical shaft | 100KN | |||
| 5. Winch | ||||
| Type: Planetary gear transmission | ||||
| Wire rope diameter | φ 14mm | |||
| Drum steel wire rope capacity | 45m (five layers | |||
| maximum lifting force of single rope | 30KN | |||
| Wire rope lifting speed | ||||
| Drum linear speed | M / s) 0.45 0.785 1.24 1.71 | |||
6.Clutch | ||||
| 7.Hydraulic system | ||||
| (1) System pressure | ||||
| Rated pressure | 8Mpa | |||
| Maximum pressure | 10MPa | |||
| 2) Oil pump | ||||
| Type | gear oil pump (cb-e25) | |||
| Displacement | 20ml / R | |||
| Rated speed | 1500r / min | |||
| Rated pressure | 16MPa | |||
| Maximum pressure | 20MPa | |||
| 8. Frame | ||||
| Type | skid type (with sliding base) drilling rig with a travel of 460mm | |||
| Give way to orifice distance | 260mm | |||
| 9. Overall dimensions of drilling rig | ||||
| 10.Weight of drilling rig (excluding power machine) | Around 1300kg | |||
The GY300 water well drilling rig have the Character :
1. Adopt automatic hydraulic feeding equipment,improve the drilling efficient
2. Can replace the drilling rod without stop
3. Centralized handles, easy operation, safe and reliable.
4. The drilling rig, pump and diesel engine are installed on a common base frame to make sure the compact structure and save space
5. The weight is light with high detachability ,easy transportation suit for the operate in plains and mountain areas
The drilling rig has the following characteristics:
1. The drilling rig has many (8 gears) rotational speed stages and reasonable rotational speed range.
2. Low rotation speed, high torque, wide application range, can be used for high-speed drilling and low-speed large hole drilling radial drilling.
3. With two reverse speeds, the labor intensity is not high when handling accidents in the hole, and it is safe in the day.
4. The installed power of the drilling rig is large, and it can be equipped with diesel engine or motor.
5. The drilling rig is advanced in structure, reasonable in layout, flexible and reliable in operation, and easy to maintain, maintain and repair.
6. The drill has small volume, light weight and good detach-ability.
7. The vertical shaft of the drilling rig has a feeding distance of 600mm, which is conducive to improving drilling efficiency and reducing accidents such as sticking happen.
8. Stable moving, simple and reliable fixing, good stability of high-speed drilling, and large distance of hole opening.
9. The WOB meter is of oil filled shockproof structure, with simple scale, accurate indication and long service life.
10. The chuck of the drilling rig is of hydraulic pin type, which is reliably clamped and does not damage the active drill pipe.
