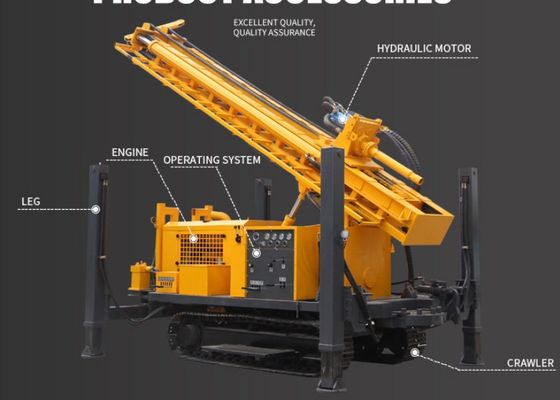

260m 300m 350m 450m Diesel Crawler Mounted Drill Rig



Model	150	180	260	300	400	500
Overall weight (T)	3.5	4.2	6.4	8	8.7	9.5
Dimension (mm )	3400*1500*2400	3800*1700*2350	4100*1900*2600	5500*1950*2780	5300*2050*2700	5350*2100*2700
Drilling diameter(mm )	130-219	130-294	140-300	140-325	130-400	140-400
Drilling depth(m)	150	180	260	300	400	500
One-time advance length of the drill(mm)	3000	3000	3000	3000/6000	3000/6000	3000/6000
Traveling speed(km/h )	2.5	2.5	2.5	2.5	6	6
Climbing ability(max )	25	30	30	30	25	25
Minimum Ground Clearance(mm)	250	250	250	230	300	350
Working Air Pressure(mpa )	1.45 - 2.5	1.7-2.5	1.7-3.0	1.7-3.3	1.7-3.5	1.7-3.5
Air consumption	15 - 27	15-27	17-35	23	17-35	17-35
Main machine power(kw)	42 /Yunnei	60/ Yunnei	85/Yuchai	92/Yuchai	100/6 cylinder	114/6 cylinder
Rotary Speed (rpm)	38 - 80	48 - 70	40-70	55-115	45-75	45 - 75
Rotary torque(Nm )	4000-5000	4200-5600	7000-9000	8500-10000	9000-10000	9500-10000





First, according to the geographical location, it is well known that water flows to the place. As the saying goes, it is most beneficial to find water in the pinch land surrounded by mountains on three sides. Because of the low-lying terrain, the groundwater will flow to the pinch mouth. There is a high probability of drilling wells near the pinch mouth to get water. The two ditches intersect, and the spring water is choppy, that is, there may be water accumulation under the mountain mouth at the intersection of the two ditches. Second, check the vegetation nearby. You will find that where there is water, there will be plenty of trees and flowers. The more vigorous the crops are, the more mature the other crops planted at the same time. This area is still booming. Drilling wells in this place can basically hit the water vein. The ground freezing and thawing condition is seen under the three buildings, because the groundwater is four or five meters away from the ground, so the ice on the ground will be very thin in winter. In summer, due to the hot weather, there is a thin water layer or wet place in the morning and evening, which is also atomized by the underground and preheater. In such a place, the water can basically be flooded. Anyway. Water is a precious natural resource for human beings. If we sell underground rivers and dig wells, the direction of water vein will be .
