Product Details:
Payment & Shipping Terms:
|
| Product Name: | XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine | Power Type: | Diesel / 13.3kw |
|---|---|---|---|
| Model Number: | XY-1A | Drill Depth: | 150m |
| Usage: | Water Well | Color: | Yellow,Yellow Or As Your Rquest |
| Application: | Geological Exploration | Drilling Angle: | 90 ~75° |
| Drilling Diameter: | Customized | Dimensions: | 1100*600*500mm, 600*650*2330mm, |
| Warranty: | 12 Months | After-sales Service Provided: | Video Technical Support |
| Highlight: | geological drilling rig machine xy-1a,xy-1a portable borehole drilling machine,borehole geological drilling rig machine |
||

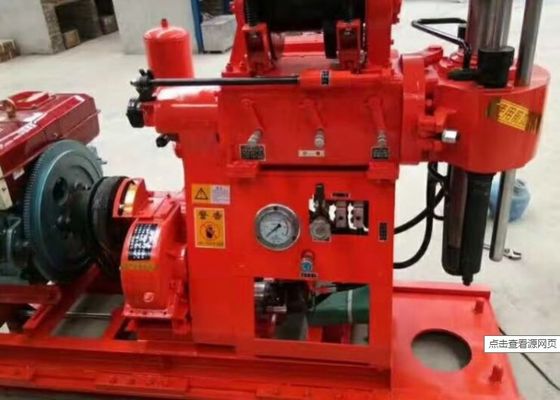

XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine
XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine Introduction
XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures
XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine Parameters:
| Basics | Drill depth (m) | 150 |
| Drill hole(mm) | 75-300 | |
| Final hole (mm) | 75 | |
| Rod diameter (mm) | 42/50 | |
| Drill angle (Degree) | 75-90 | |
| Size(LxWxH)mm | 1710x8500x1340 | |
| Weight (kg) | 500 | |
| Spindle | Spindle speed (r/min) | 1010/790/470/295/140 |
| Travel (mm) | 450 | |
| Max. Pressure (kN) | 15 | |
| Lifting force (kN) | 25 | |
| Hoist | Maxing lifting force (kN) | 15 |
| Drum speed (r/min) | 121/76/36 | |
| Drum diameter (mm) | 140 | |
| Steel rope diameter (mm) | 9.1-12 | |
| Steel rope capacity | 35 | |
| Brake diameter (mm) | 252 | |
| Brake band width (mm) | 50 | |
| Oil Pump | Model | YB-20/125 |
| Rated pressure (Mpa) | 12.5 | |
| Flow rate (ml/r) | 20 | |
| Rated speed (r/min) | 1500 | |
| Diesel engine | Model | ZS1105(18HP) |
| Nominal speed (r/min) | 2200 | |
| Power(Kw) | 13.3 |
XY-1A Geological Drilling Rig Machine Main Advantages
1.2 Features
1.2.1 The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.
1.2.2 The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability.
1.2.3 Hole pressure gauge indicates pressure which can be easy to grasp the situation inside the hole.
1.2.4 Handle concentration, easy operation.
1.2.5 It is compact, small in size, light in weight, strong in decomposition and easy to remove .It can be used in plains and mountains.
XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine Purchase Attentions
The product produced by the company has a long life and high durability. As long as it is operated according to normal operation rules, the product can be used for a long time, so the product is a more popular product type at present. The regular manufacturers should be selected for purchasing geological drill pipes. At present, the manufacturers in different regions may not be very uniform in terms of price. The purchaser should be prepared before purchasing
