Product Details:
Payment & Shipping Terms:
|
| Product Name: | GK 200 Core Sampling Vertical Portable Exploration Geological Drilling Rig Machine | Type: | Core Drilling Rig |
|---|---|---|---|
| Drilling Hole Diameter: | 295mm | Drilling Depth: | 200 Meters |
| Power Type: | Diesel Engine | Voltage: | 220V/380V |
| Power(W): | 11kw | Dimension(L*W*H): | 660*245*195mm |
| Weight: | 975KG | Warranty: | 12 Month |
| Highlight: | Diesel Engine geological drilling machine,Exploration Geological Drilling Rig Machine,Vertical geological drilling machine |
||

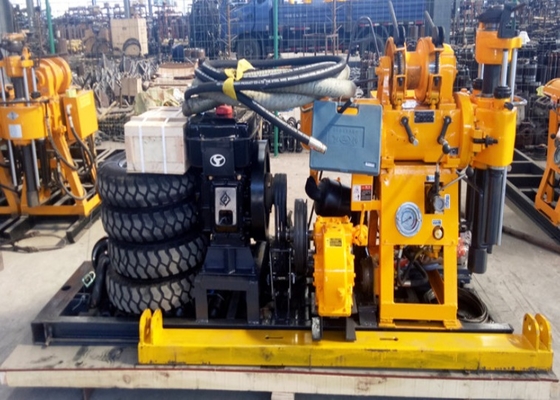

GK 200 Core Sampling Vertical Portable Exploration Geological Drilling Rig Machine
Product Description
Product Parameters
| GK 200 Drilling depth | 200m | |
| Max open hole caliber | 300mm | |
| End hole caliber | 75mm | |
| Drilling Rod diameter | 60mm | |
| Drilling angle | 90°~75° | |
| Drill rig moving stroke | 300mm | |
| Power Engine | Diesel engine 22HP | |
| Spindle speed | 64 128 287 557 r/min | |
| Spindle stroke | 450mm | |
| Max.Single line lifting capacity | 2400kg | |
| Max.Single line lifting speed | 0.41 0.82 1.64m/s | |
| Wirerope caliber | 13mm | |
| Mud pump detail | Diesel 170L/min | |
| Work pressure | 1.5Mpa | |
| Water inlet pipe diameter | 40mm | |
| Water outlet pipe diameter | 30mm | |
Product Main Features
1. With oil pressure automatic feeding mechanism, high drilling efficiency.
2. Centralized handle, convenient operation, safe and reliable.
3. The drilling rig, shifting base and diesel engine (or motor) are all installed on the same underframe, occupying a small space.
4. Light weight, strong decomposition, easy to move, suitable for plain and mountain work.
Product Appliication
1 Application and scope
1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.
1.2 Geological core drilling, physical prospecting.
1.3 Small grout Confucius, drill hole drilling.
1.4 Small well drilling.
It has the features of big turning torque and big opening diameter. And it is compact, small in size, light in weight, strong in decomposition and easy to remove . This drilling machine adopts big driven drill pipe and double guide rod to increase stability .This rig can move 350mm back and forth on the base, so it facilitates the removal of the drill pipe.
How to select drill pipe
The active drill pipe is a tool used to transmit the torque of the drill pipe to the drill pipe to achieve drilling. It is suitable for various specifications of core drills, mainly used for engineering geological exploration, hydrology, water wells and large-diameter engineering construction. In the process of purchasing, the most important thing is to see the raw materials and processing technology of the drill pipe, which is directly related to whether the drill pipe can effectively avoid fracture, water leakage, gluing, deformation, wear and other problems. With Baosteel tube as the raw material, the end of drill pipe is heated by medium frequency, hydraulic upsetting and heat treated to effectively eliminate the internal stress in the early processing. The drill pipe joint is made of 42CrMo. After rough machining, it is quenched, tempered and heat treated. After finishing, it is nitrided on the surface, which can effectively eliminate the problems of gluing and pulling, and is more wear-resistant and easy to disassemble
