Product Details:
Payment & Shipping Terms:
|
| Drilling Diameter: | 105-305mm | Lifting Speed: | 20m/min |
|---|---|---|---|
| Weight: | 5.5T | Maximum Turning Torque: | 5900 |
| Drill Rod Length: | 3m | Lifting Force: | 18T |
| Fast Forward Speed: | 40m/min | Drilling Method: | Water Mud /Air Compressor |
| Highlight: | 200m Trailer Hydraulic Well Drilling Rig,Mud Pump Hydraulic Well Drilling Rig,Air Compressor Hydraulic Well Drilling Rig |
||

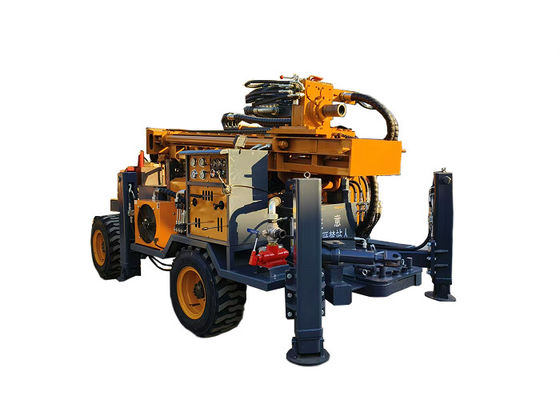

This Water Well Drilling Rig is a high-quality drilling rig equipment designed for drilling water wells in agricultural areas.
The drilling rig has a drilling diameter of 105-305mm and a maximum depth of 200 meters. It is easy to operate, has strong performance, and has extremely low maintenance costs. It is suitable for a wide range of formations.
The drilling rig is suitable for high-rise buildings, bridges, geological mines, ports, dam foundations, water well construction, and complex ground source heat pump drilling construction.
There are two ways to travel a water well drilling rig: hydraulic drive and trailer.
The drilling rig uses mechanical transmission, a small gantry trailer, and self-lifting, which facilitates long-distance mobile construction;
| Product | Water Well Drilling Rig |
| Maximum rotation speed | 85/170r/min |
| Weight | 5.5T |
| Adaptive conditions | Loose Layer And Bedrock |
| Lifting force | 18T |
| Footage efficiency | 10-35m/h |
| Drill rod length | 3m |
| Drilling Method | Water Mud /Air Compressor |
| Climbing degree | 30 |
| Engine | Xidong65KW |
| Keywords | Water Well Drilling Rig, Homemade Drilling Rig, Borewell Drill Rig |
The Shitan ST200 is the ideal borewell drill rig for those looking to drill water wells. It uses both water mud and air compressor drilling methods to ensure that it can handle any drilling scenario. The drilling rod measures Φ76mm, which is perfect for drilling deep wells.
This water well drilling rig is perfect for agricultural water well drilling. It is easy to transport thanks to its trailer design and can be taken to any farm or field with ease. The ST200 is capable of drilling multiple wells in a short amount of time, making it perfect for farmers who need to access water quickly.
The Shitan ST200 is available for purchase with a customized quotation list, with a minimum order quantity of 1 set. The product is packaged in a wooden box and can be delivered within 7 days after payment. Payment terms include TT and Western Union, and the supply ability of the product is 1000 or 2000 sets per year.
To summarize, the Shitan ST200 trailer type drilling rig is perfect for drilled water wells, borewell drill rig, and agricultural water well drilling. With its powerful design, various drilling methods, and ease of transportation, this product is a must-have for anyone looking to access water quickly and efficiently.
