ST 50 Portable Customized Core Drilling Rig Equipment 50 Meters

ST 50 Portable Customized Core Drilling Rig Equipment 50 Meters
ST 50 Portable Customized Core Drilling Rig Equipment 50 Meters ST 50 Portable Customized Core Drilling Rig Equipment 50 Meters

Large Image :  ST 50 Portable Customized Core Drilling Rig Equipment 50 Meters

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST 50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 3-5 days
Payment Terms: T/T, Western Union
Supply Ability: 20000 set/year
Detailed Product Description
Product Name: ST 50 Portable Customized Drilling Equipment 50 Meters Core Drilling Rig Warranty: 1 Year
Drilling Hole Diameter: Customized Drilling Depth: 50 Meters
Dimension(L*W*H): 1180×680×1600mm Drill Pipe Diameter: 42mm
Condition: New Weight: 200KG
Power Type: Diesel Color: Yellow,Red
High Light:

Customized Core Drilling Rig

,

Core Drilling Rig 50 Meters

,

50 Meters Core Drilling Rig

ST 50 Portable Customized Drilling Equipment 50 Meters Core Drilling Rig

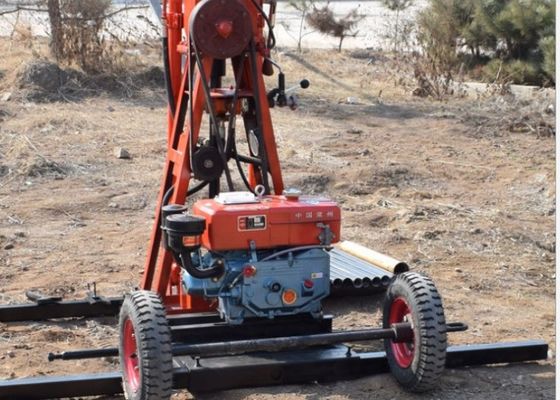

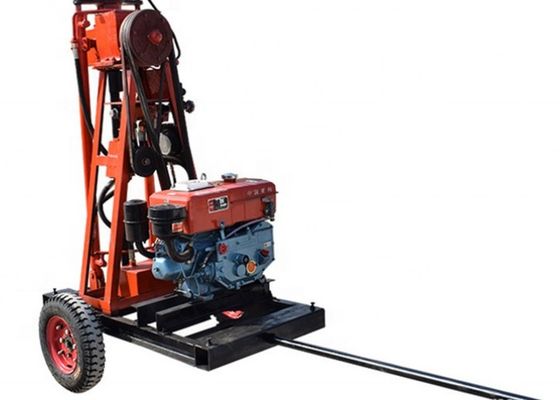

ST 50 Core Drilling Rig Introduction:

It is a kind of portable drilling rig with oil pressure feeding, equipped with shifting base, hydraulic winch and 4.5m high triangular frame drilling tower.  The matching drilling depth is determined according to the stratum conditions. All kinds of strata of soil and rock can be drilled, and core can be taken or not..



ST 50 Core Drilling Rig Parameters:



Drilling Rig Model ST50 drilling rig
Drilling depth (m) The max. 50 meter
Hole size diameter 73-108mm
Drill pipe diameter 42mm
Vertical spindle speed 70-650
Reverse rotation speed 50-130
Power 5.7KW
Outsize 1180×680×1600mm

Weight

(including Gasoline engine )

208kg

ST 50 Core Drilling Rig Advantages:

1. With oil pressure automatic feeding mechanism, high drilling efficiency.
2. Centralized handle, convenient operation, safe and reliable.
3. The drilling rig, shifting base and diesel engine (or motor) are all installed on the same underframe, occupying a small space.
4. Light weight, strong decomposition, easy to move, suitable for plain and mountain work.

ST 50 Core Drilling Rig Service:


Pre-sale Service

1.Supply item design,process design.

2.Help you to chose the fit machine.

3.Making the machine according to your requirement.

Sale Service

1.Acceptance equipment together with you.

2.Help you to make the method statement and the details of the process.

After Service

1.Guarantee for a year.

2.Quality problem,we will send you the accessories.

3.Free repair whole using life(without the freight and accessories charge).
