ST 50 Portable Soil Drilling Machine 50 Meters Depth With Diesel Engine

Large Image : ST 50 Portable Soil Drilling Machine 50 Meters Depth With Diesel Engine

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 3-5 days
Payment Terms:	T/T, Western Union
Supply Ability:	20000 set/year

Contact Now

Detailed Product Description

Product Name:	ST 50 Portable Customized Drilling Equipment 50 Meters Core Drilling Rig	Warranty:	1 Year
Drilling Hole Diameter:	Customized	Drilling Depth:	50 Meters
Dimension(LWH):	1180×680×1600mm	Drill Pipe Diameter:	42mm
Condition:	New	Weight:	200KG
Power Type:	Diesel	Color:	Yellow,Red
Highlight:	Customized Core Drilling Rig , Core Drilling Rig 50 Meters , 50 Meters Core Drilling Rig

ST 50 Portable Soil Drilling Machine - 50 Meters Depth With Diesel Engine

Product Specifications

Attribute	Value
Product name	ST 50 Portable Customized Drilling Equipment 50 Meters Core Drilling Rig
Warranty	1 Year
Drilling Hole Diameter	Customized
Drilling depth	50 Meters
Dimension (L×W×H)	1180×680×1600mm
Drill pipe diameter	42mm
Condition	New
Weight	200KG
Power Type	Diesel
Color	Yellow, Red

Product Overview

The ST 50 is a portable drilling rig with oil pressure feeding, equipped with shifting base, hydraulic winch and 4.5m high triangular frame drilling tower. It can drill through various soil and rock strata, with optional core sampling capability.

Technical Parameters

Parameter	Specification
Drilling Rig Model	ST50 drilling rig
Maximum drilling depth	50 meters
Hole size diameter	73-108mm
Drill pipe diameter	42mm
Vertical spindle speed	70-650 rpm
Reverse rotation speed	50-130 rpm
Power	5.7KW
Dimensions	1180×680×1600mm
Weight (including engine)	208kg

Key Features

Oil pressure automatic feeding mechanism for high drilling efficiency
Centralized handle for convenient, safe and reliable operation
Compact design with drilling rig, shifting base and diesel engine mounted on same underframe
Lightweight with strong decomposition capability, suitable for both plain and mountain work

Service Commitment

Pre-sale Service

Item and process design consultation, machine selection assistance, and custom manufacturing according to your requirements.

Sale Service

Joint equipment acceptance and assistance with method statements and process details.

After-sale Service

1-year guarantee, replacement of defective parts, and lifetime free repair (excluding freight and parts charges).

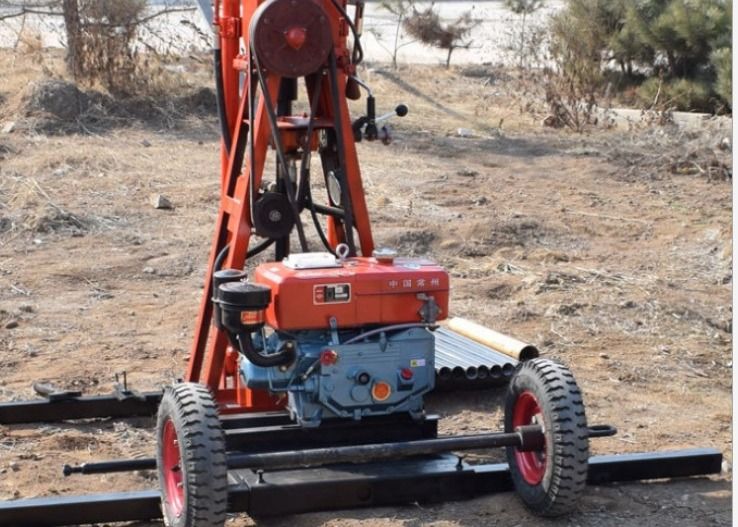

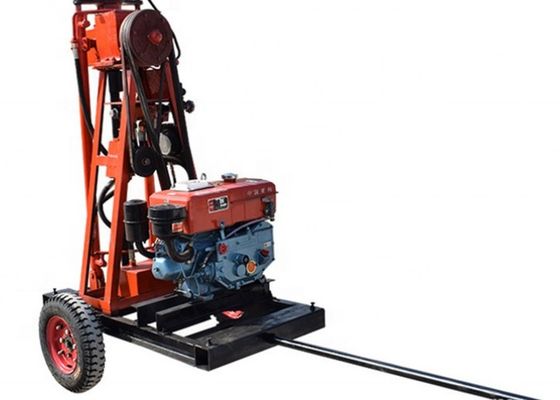

Product Images
