150 Meters Depth XY-1A Geological Drilling Machine Portable

large.img.alt
small.img.alt small.img.alt

Large Image :  150 Meters Depth XY-1A Geological Drilling Machine Portable

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7 days
Payment Terms: T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Product Name: 150 Meters Depth XY-1A Geological Drilling Equipment Portable Core Drill Rig Drilling Depth: 150 Meters
Power Type: Diesel Power Machine Weight: 480kg
Application: Water Well,railways, Core Drilling Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Borehole Dip Angle: 90°~75
Spindle Speed: 1010、790、470、295、140(r/min) Rated Pressure: 12.5Mpa
Model(diesel Engine): 1105 Rated Power: 18KW
WEIGHT: AROUND 600KG
High Light:

150m geological drilling machine

,

xy-1a geological drilling machine

,

150m depth portable core drilling machine

150 Meters Depth XY-1A Geological Drilling Equipment Portable Core Drill Rig





XY-1 A Portable Core Drill Rig  Introdution



XY-1 Core Drill is a light drill for shallow hole with a hydraulic feeding. It is efficient and convenient, designed by our company to meet the requirements of modern geological and engineering operations, and the feedback of our customers all over the world has been positive. The drill applies to reconnaissance exploration, geophysical exploration, road and building exploration and small water well drilling.



XY-1 A Portable Core Drill Rig Tech Data



XY-1 A 150 Meters Depth Core Drill Rig
Drill Swivel Head

Drilling depth



Max.150m

Spindle speed



1010,790,470,295,140(r/min)

Hole diameter



Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)



Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



XY-1 A  Core Drill Rig Advantage



1. With a hydraulic feed mechanism, improve drilling efficiency and reduce the labor intensity of workers.
2. The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill rod, which can be used to
reverse the rod without stopping the machine. The work efficiency is high, the operation is convenient, and it is safe and
reliable.
3. Equipped with a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
4. The handle is convenient for centralized operation.
5. The drilling rig has a compact structure, small size, lightweight, strong decomposability, easy to move



FAQ Of XY-1 A Portable Core Drill Rig



Q1 :Are you factory or trading company?
A:We are direct factory
Q2 : If accept sample order?
A:Yes, we are welcome your sample order to testing our quality.
Q3 : What is the color of the machine?
A:Yes, we do OEM customized
Q4 : How to control the quality?
A: 1.Quality first. In order to guarantee high quality , we have strict inspection for all products and raw materials. ISO9001:2000
2.Good after –sale service system, we draw up the Quality Guarantee accordingly to the industrial standards combining field experience.

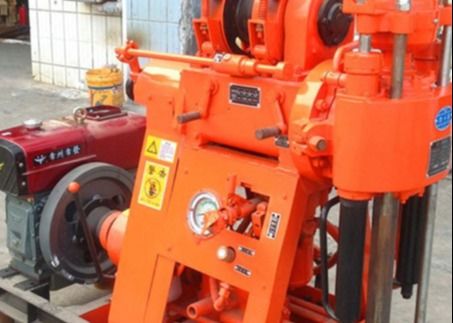

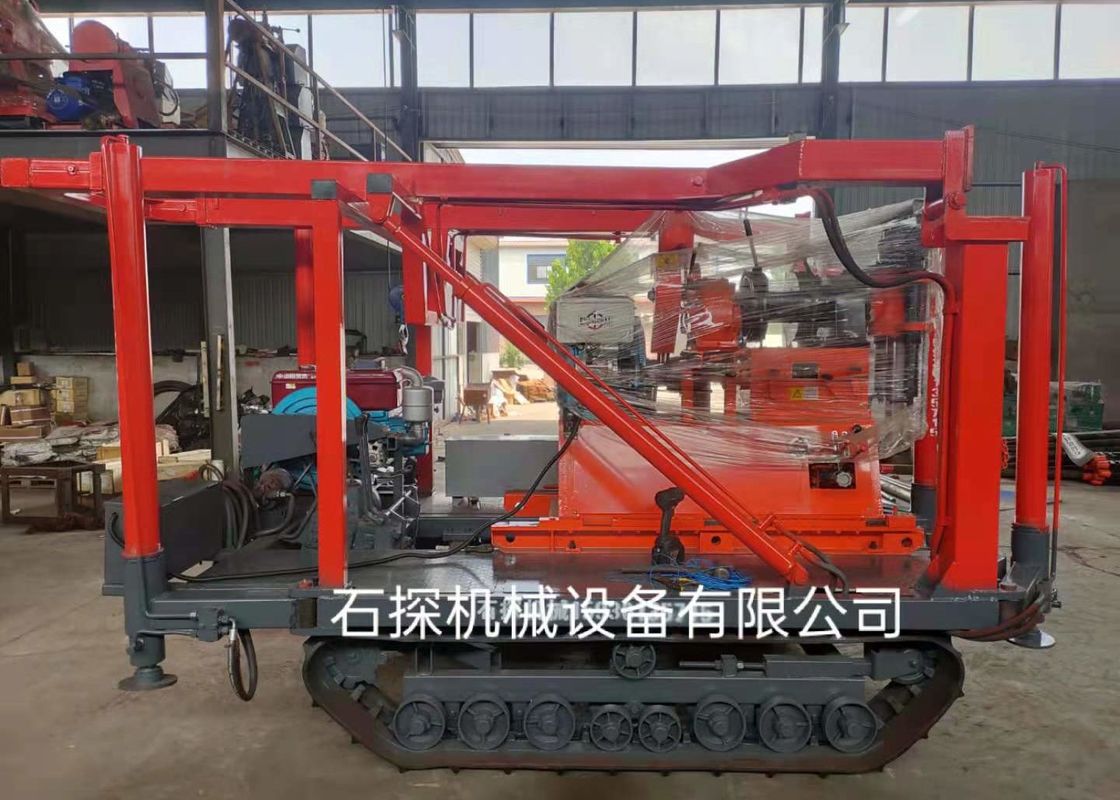

150 Meters Depth XY-1A Geological Drilling Machine Portable 0150 Meters Depth XY-1A Geological Drilling Machine Portable 1150 Meters Depth XY-1A Geological Drilling Machine Portable 2
