XY-1A Geological Mining Drilling Machine 150 Meters With Diesel Engine

Large Image : XY-1A Geological Mining Drilling Machine 150 Meters With Diesel Engine

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Product Name:	XY-1A Geological Drilling Equipment Portable Core Drill Rig	Drilling Depth:	150 Meters
Power Type:	Diesel Power	Machine Weight:	480kg
Key Words:	Water Well,railways, Core Drilling,soil Testing Drilling Rig,borehole Drilling Rig,exploration Drilling Machine,	Dimension(LWH):	16209701560mm
Drill Pipe Diameter:	42mm	Borehole Dip Angle:	90°~75
Spindle Speed:	1010、790、470、295、140（r/min）	Rated Pressure:	12.5Mpa
Model(diesel Engine）:	1105	Rated Power:	18KW
WEIGHT:	AROUND 600KG
Highlight:	150m geological drilling machine , xy-1a geological drilling machine , 150m depth portable core drilling machine

XY-1A Geological Mining Drilling Machine 150 Meters With Diesel Engine

Product Specifications

Attribute	Value
Product Name	XY-1A Geological Drilling Equipment Portable Core Drill Rig
Drilling Depth	150 meters
Power Type	Diesel Power
Machine Weight	480kg
Dimension (L×W×H)	1620×970×1560mm
Drill pipe diameter	42mm
Borehole dip angle	90°~75°
Spindle speed	1010, 790, 470, 295, 140 (r/min)
Rated pressure	12.5Mpa
Model (diesel engine)	1105
Rated power	18KW
Weight	Approximately 600KG

Product Description

The XY-1A Portable Core Drill Rig is a lightweight hydraulic drilling machine designed for shallow hole applications up to 150 meters depth. Engineered for efficiency and portability, this rig meets modern geological and engineering requirements with proven performance worldwide.

Technical Specifications

Component	Specification
Drilling Depth	Max. 150m
Spindle Speed	1010, 790, 470, 295, 140 (r/min)
Spindle Stroke	450mm
Spindle Pull-down	Max. 15KN
Spindle Lifting Capacity	Max. 25KN
Oil Pump Model	YBC-12/125
Water Pump Pressure	Max. 1.25Mpa
Hoist Capacity	Max. 15KN
Diesel Engine Power	18KW

Key Features

Hydraulic feed mechanism enhances drilling efficiency and reduces operator fatigue
Upper ball clamping mechanism with hexagonal active drill rod enables reverse rod operation without stopping
Pressure gauge at bottom of hole provides real-time monitoring of downhole conditions
Centralized handle controls for convenient operation
Compact, lightweight design with strong decomposability for easy transportation

Applications

Ideal for reconnaissance exploration, geophysical surveys, road and building construction surveys, and small water well drilling operations.

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are the direct manufacturer of these drilling rigs.

Q: Do you accept sample orders?

A: Yes, we welcome sample orders to evaluate our product quality.

Q: What is the machine color?

A: We offer OEM customization including color options.

Q: How do you ensure quality control?

A: We implement strict quality inspections for all products and materials, certified to ISO9001:2000 standards, with comprehensive after-sale service support.

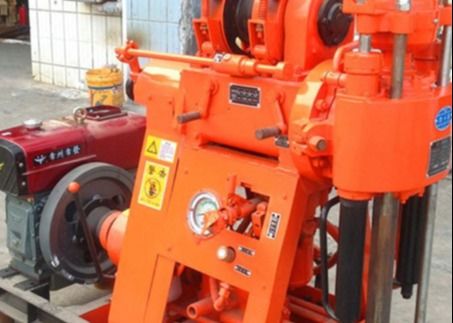

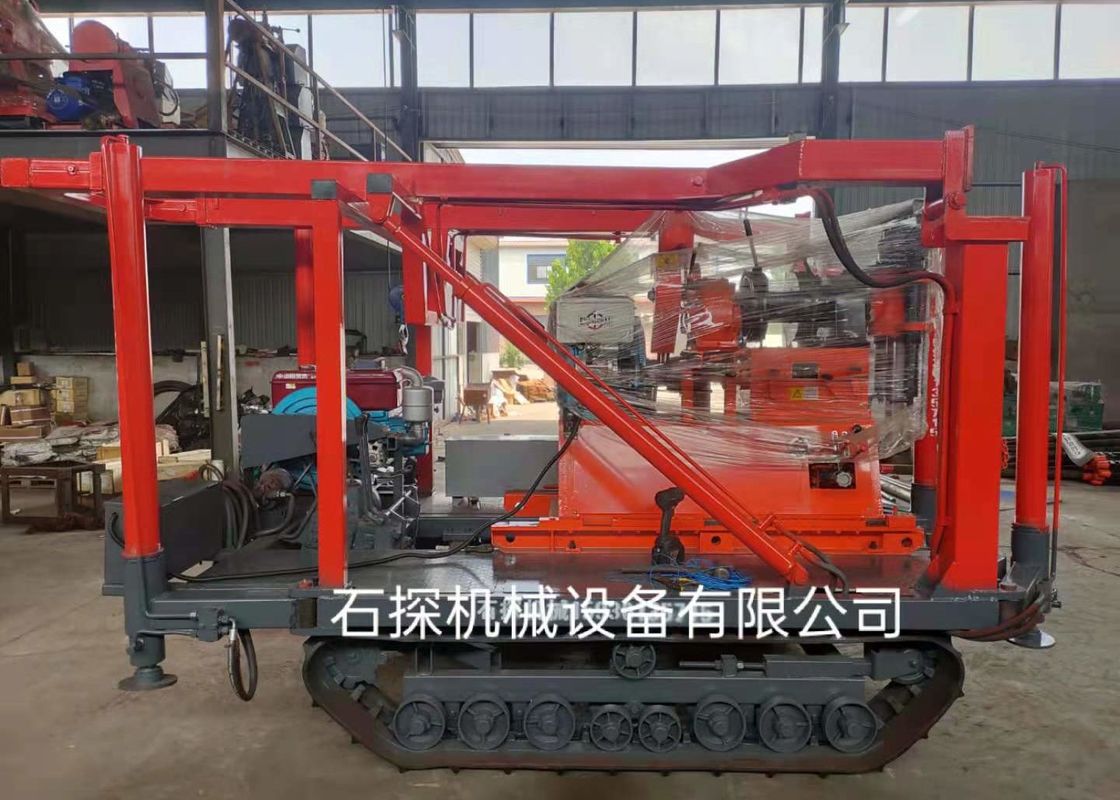

Product Images
