Product Details:
Payment & Shipping Terms:
|
Product Name: | Soil Testing Drilling Rig Machine | Drilling Diameter: | 46mm-150mm |
---|---|---|---|
Geological: | Soil, Rock, Hard Rock, | Drilling Depth: | 100m-120m |
Type: | Portable Type | Usage: | Soil Sample |
Net Weight: | 600 KG | Warranty: | 1 Year |
Highlight: | soil sample testing equipment,soil testing drilling rig |

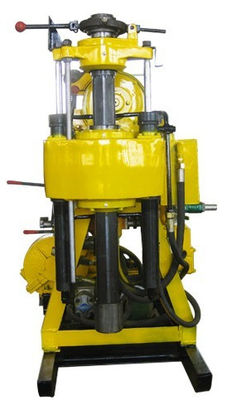

Mini Soil And Geological Investigation Drilling Rig For 150 Meter
Product description
Mini Soil And Geological Investigation Drilling Rig is a kind of hot sale type and hydraulic feeding drill. Mini Soil And Geological Investigation Drilling Rig has the characteristics of big power, great lifting force (2T) and high transmission torque.
1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.
1.2 Geological core drilling, physical prospecting.
1.3 Small grout Confucius, drill hole drilling.
1.4 Small well drilling.
Product parameter
Mini Soil And Geological Investigation Drilling RigDrilling diameter(mm) | 75,91,110,130,150,300 |
Drilling depth (m) | 150,100,70,50,30 |
Drill pipe diameter (mm) | 42,50 |
Drilling angle(°) | 90~75 |
Equipment size(L * B * H) | 1710*850*1340 (mm) |
Rig weight (except engine) | 500 |
Gyrator | |
Spindle speed (four gear) (r/min) | 140,295,470,790,1010 |
Spindle travel(mm) | 450 |
Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
Spindle no load drop maximum movement speed(m/s) | 0.067 |
Spindle maximum feed pressure(KN) | 15 |
Spindle maximum lifting force(KN) | 25 |
Winch assembly | |
Winch maximum lifting force (single rope) | 15 |
Reel speed (r/min) | 36,76,121 |
Reel circumferential speed(m/s) | 0.166,0.331,0.733,1.465 |
Reel diameter(mm) | 140 |
Wire rope diameter(mm) | 9.3 |
Wire rope density (m) | 95 |
Brake diameter(mm) | 252 |
Brake band width (mm) | 50 |
Water pump | |
Pump type | Horizontal single cylinder double acting |
Maximum displacement (motor)(L/min) | 95 (77) |
The maximum allowable pressure (Mpa) | 1.2 |
Work pressure (Mpa) | 0.7 |
Cylinder diameter (mm) | 80 |
Piston stroke(mm) | 100 |
Oil pump | |
Oil pump type | YBC-20/125 |
Nominal pressure (Mpa) | 12.5 |
Rated flow(ml/r) | 20 |
Rated speed(r/min) | 800-2500 |
Our service
1. We provides technical train for free.
2. Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.
3. When the machine should be maintained, you will receive the reminding from us.
4. According to different geological conditions,we will recommend different construction plans for you.
5. Remind you the wearing parts,so you can prepare enough.
6. 24 hours respond to your quality problem.
7. Other customer's reasonable request
