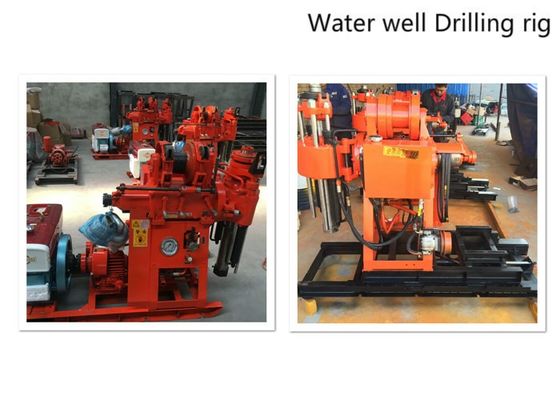

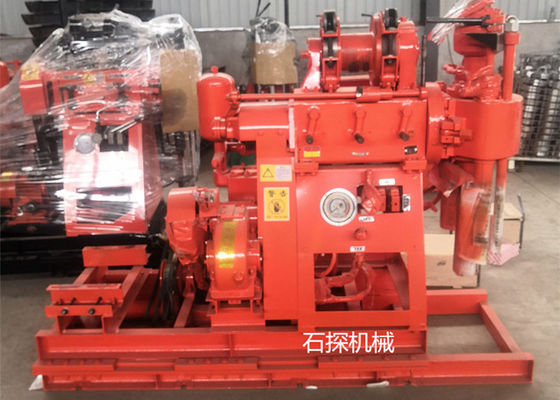

Hydraulic Water Well Drilling Rig 180m Depth Drilling For Geotechnical Investigation

Hydraulic Water Well Drilling Rig 180m Depth Drilling For Geotechnical Investigation
Hydraulic Water Well Drilling Rig 180m Depth Drilling For Geotechnical Investigation

Large Image :  Hydraulic Water Well Drilling Rig 180m Depth Drilling For Geotechnical Investigation

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Model Number: GK-180 Type: Water Well And Core Drilling Machine
Power Type: Diesel Or Motor Usage: Water Well,railways, Core Drilling, Physical Prospecting
Voltage: 220V/380V Power(W): 16.2kw
Dimension(L*W*H): 2120x875x1480mm Weight: 750kg
Name: GK-180 Drilling Rig
High Light:

water well borehole drilling rig

,

hydraulic water well drilling machine

180m depth water well drilling rig machine for geotechnical investigation GK-180-1





Product description​



GK-180-1 drilling rig is developed to synthesize the advantages of various drilling rigs. The new kind of shallow hole drilling rig is mainly used in engineering geological survey and secondly used in core drilling.



Application and scope



1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.

1.2 Geological core drilling, physical prospecting.

1.3 Small grout Confucius, drill hole drilling.

1.4 Small well drilling.

The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability. It is compact, small in size, light in weight, strong in decomposition and easy to remove .



Product parameters



GK-180 Water Well Drilling rig
Drilling depth 180m
Drill rod caliber 42mm
Hole diameter 75mm
Drilling angle 90°-75°
Dimensions 2120*875*1480mm
Weight(without power unit) 750kg
Swivel head
Spindle speed 71,182,310,790r/min
Spindle stroke 450mm
Upward displacement speed of idling vertical spindle 0.05m/s
Downward displacement speed of idling vertical spindle 0.067m/s
Spindle pull-down max. 15KN
Spindle lifting capacity max. 25KN
Spindle max.torque 1.5KN.m
Brake diameter 278mm
Brake belt width 50mm
Hoist
Max. lifting capacity 20KN
Hoisting drum revolution 20,39,85,170r/min
Drum diameter 140mm
Wire rope diameter 13mm
Wire rope capability 35m
Oil pump
Model YBC-12/80
Rated pressure 8Mpa
displacement 8ml/r
rated speed 1500r/min
Water pump
Displacement max. 95(77)L/min
Working pressure max. 1.2Mpa
Rated pressure 0.7Mpa
Liner diameter 80mm
Piston stroke 100mm
Power(diesel engine or motor)
Rated power 13.2KW
Rated speed 2200r/min
Electric motor Y160-4
Rated power 11Kw
Rated speed 1460r/min
