XY-2B Underground Mining Drilling Machines With Light Weight

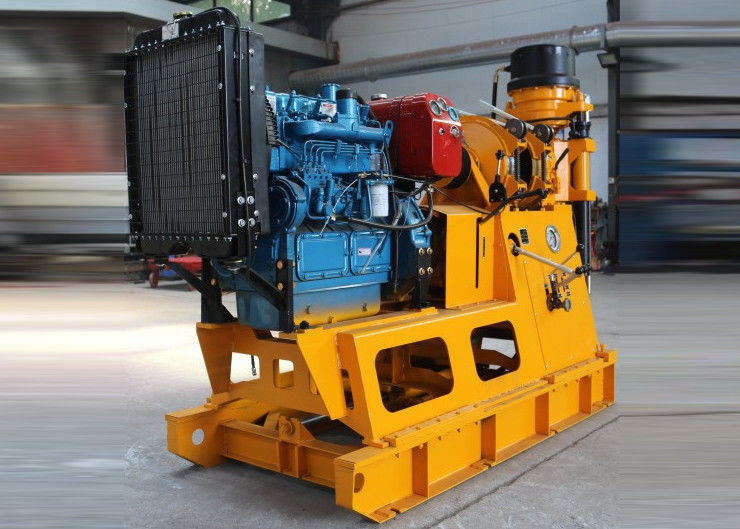

Large Image : XY-2B Underground Mining Drilling Machines With Light Weight

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-2B

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union

Contact Now

Detailed Product Description

Type:	Core Drilling Machine	Power Type:	Diesel
Model Number:	XY-2B	Usage:	Core Drill
Voltage:	380V	Weight:	1200KGS
A Drill Depth:	100m, 320m, 380m, 530m
Highlight:	water borehole drilling equipment , hydraulic water well drilling machine

XY-2B Underground Mining Drilling Machines With Light Weight

Product Attributes

Attribute	Value
Type	Core Drilling Machine
Power Type	Diesel
Model Number	XY-2B
Usage	core drill
Voltage	380V
Weight	1200KGS
Drill depth	100m, 320m, 380m, 530m

Product Description

XY-2B 300-500m Core Drilling Machine Water Well Drill Rig

The XY-2B drill rig is a portable medium-shallow hole core drilling machine, primarily used for large and small hole core drilling applications including water wells, geothermal and irrigation wells, geotechnical investigations, mining exploration, bridge building, geothermal wells, blast-holes, and mini type pile foundation drilling.

Main Features

High performance in various land conditions including soil, sand, and hard rock
Three drill bit options (three-wing bit, alloy bit, and diamond bit) suitable for both soft and hard ground conditions
Hydraulic control system enhances working efficiency and reduces labor requirements
Mounted on wheels or trailer for easy transportation by car or tractor
Power options include diesel engine or electric motor to suit your requirements

Technical Specifications

Unity Machine Parameters
Drilling depth	600m
Max open hole caliber	300mm
End hole caliber	75mm
Drilling angle	90°~65°
Dimension	2220 x 900 x 1800mm
Drill weight (without power)	1950kg

Spindle Specifications
Spindle speed	Forward 57 99 157 218 270 470 742 1024r/min Reverse 51 242r/min
Spindle stroke	450mm
Spindle inner diameter	96mm
Lifting capacity	6000kg

Hoist Specifications
Max.Single line lifting capacity	3000kg
Max.Single line lifting speed	0.52, 0.90, 1.42, 1.95m/s
Wire rope caliber	12.5mm
Wire rope length	50m
Reel diameter	200mm
Hug folldgate belt width	90mm

Oil Pump Specifications
Type	F532 gears oil pump
Flow	32 L/min
Pressure	20 Mpa

Power Options
Diesel engine	K4100D30
Electric motor	Y180L-4 22KW

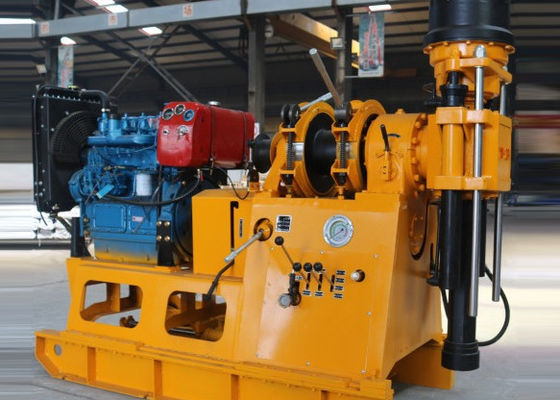

Product Images
