Hydraulic Diamond Drilling Equipment For Mining/Soil Testing

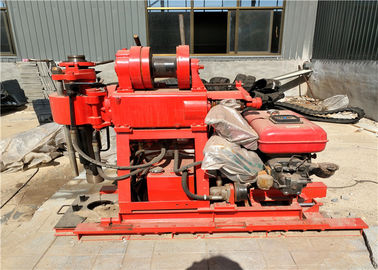

Large Image : Hydraulic Diamond Drilling Equipment For Mining/Soil Testing

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1B

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union

Contact Now

Detailed Product Description

Engine:	Diesel Power	Model:	XY-1A
Type:	Rotary Drilling Rig	Product Name:	XY-1A Water Well Drill Rigs
Drilling Depth:	200m	Drilling Diameter:	75mm
Drill Rod:	50mm	Drill Angle:	45°-90°
Machinery Size::	1433x697x1273
Highlight:	water well borehole drilling rig , hydraulic water well drilling machine

Hydraulic Diamond Drilling Equipment For Mining/Soil Testing

Product Specifications

Attribute	Value
Engine	Diesel Power
Model	XY-1A
Type	Rotary Drilling Rig
Product name	XY-1A water well drill rigs
Drilling Depth	200m
Drilling Diameter	75mm
Drill Rod	50mm
Drill Angle	45°-90°
Machinery size	1433x697x1273

XY-1A Water Borehole Drilling Equipment

Introduction

The XY-1A Drilling Rig is a hydraulic-feed low speed drilling rig designed for versatile applications. This complete system includes the rig, water pump, and diesel engine mounted on a single base for convenient operation.

Applications

Survey and prospecting operations
Geophysical exploration
Road and building construction projects
Blasthole drilling operations
Compatible with various drilling bits for different strata
Effective in 2-9 grade sandy clay and bedrock formations

Technical Specifications

Parameter	Value
Borehole diameter	75, 91, 110, 130, 150, 300mm
Drilling depth	200, 150, 100, 70, 50, 30m
Drill pipe diameter	42, 50, 60mm
Angle range	90°-75°
Size (L×W×H)	1433×697×1273mm
Weight (without power unit)	525kg

Key Features

Hydraulic automatic feed mechanism enhances drilling efficiency and reduces labor
Ball holding mechanism replaces traditional chuck for safer, continuous operation
Bottom hole pressure gauge provides real-time monitoring
Centralized control handles for intuitive operation
Lightweight modular design for easy transport and setup
Versatile performance in both plains and mountainous terrain

Performance Specifications

Component	Specification
Spindle speed (4-speed)	71, 142, 310, 620r/min
Spindle stroke	450mm
Max feeding force	15KN
Max lifting force	25KN
Max output torque	1.25KN.M
Hoist capacity (single rope)	15KN

Power Options

Power Type	Specification
Diesel Engine	Model: ZS1115 Power: 16.2kw Speed: 2200r/min
Electric Motor	Model: Y160-4 Power: 11kw Speed: 1460r/min

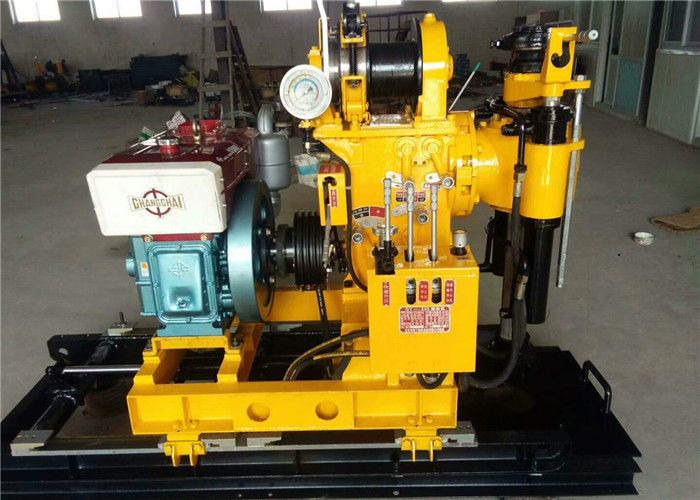

Product Images
