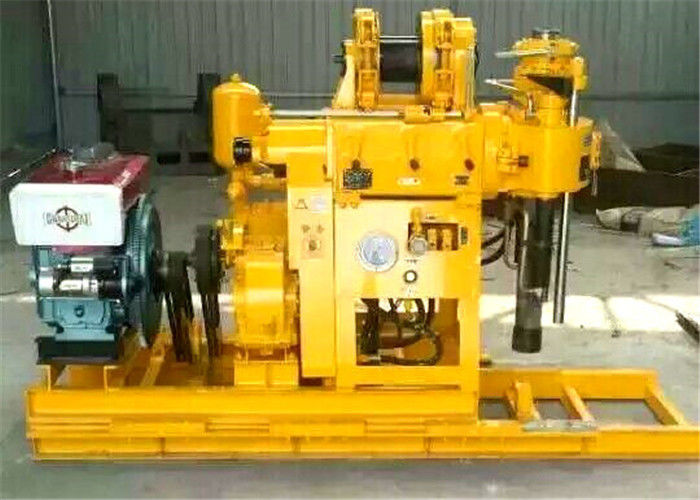

GK-180-1 Small Water Well Drilling Rig / Underground Drilling Machine

GK-180-1 Small Water Well Drilling Rig / Underground Drilling Machine
GK-180-1 Small Water Well Drilling Rig / Underground Drilling Machine
video play

Large Image :  GK-180-1 Small Water Well Drilling Rig / Underground Drilling Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK-180
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C,D/A,T/T,Western Union
Contact Now
Detailed Product Description
Type: Water Well And Core Drilling Machine Dimension(L*W*H): 1750*780*1273
Color: Customer Required Power Type: Diesel Or Motor
Voltage: 220V/380V Usage: Water Well,railways, Core Drilling
Highlight:

portable core drilling machine

,

geological drilling machine

,

underground drilling machine

GK-180-1 Small Water Well Drilling Rig / Underground Drilling Machine
Product Specifications
Type Water well and core drilling machine
Dimensions (L×W×H) 1750 × 780 × 1273 mm
Color Customer specified
Power Type Diesel or electric motor
Voltage 220V/380V
Usage Water well drilling, railways, core drilling
Product Overview

The GK-180-1 drilling rig combines the best features of various drilling systems, optimized for shallow hole drilling applications. Primarily designed for engineering geological surveys with secondary capability for core drilling operations.

Key Applications
  • Engineering geological investigation for railways, hydropower projects, transportation infrastructure, bridges, and dam foundations
  • Geological core drilling and physical prospecting
  • Small grout hole and drill hole applications
  • Small-scale water well drilling operations

This rig features a ball-mounted card blessing mechanism with six-side active drill rods, enabling continuous operation without stopping for rod changes. The system delivers high efficiency, operational convenience, and reliable safety performance. Its compact design offers excellent portability with easy disassembly and transport.

Technical Parameters
Drilling Rig Specifications
Drilling diameter (mm) 75, 91, 110, 130, 150, 300
Drilling depth (m) 180, 150, 100, 70, 50, 30
Drill pipe diameter (mm) 42, 50
Drilling angle (°) 90-75
Equipment dimensions (L×W×H) 1750 × 780 × 1273 mm
Rig weight (excluding engine) 595 kg
Gyrator Specifications
Spindle speed (four gear) (r/min) 71, 182, 310, 790
Spindle maximum feed pressure (KN) 15
Spindle maximum lifting force (KN) 25
Spindle maximum output torque (KN•m) 1.5
Winch Assembly
Winch maximum lifting force (single rope) 20 KN
Reel speed (r/min) 20, 39, 85, 170
Reel circumferential speed (m/s) 0.172, 0.345, 0.738, 1.476
Reel diameter (mm) 140
Wire rope diameter (mm) 9.3
Wire rope length (m) 40
Brake diameter (mm) 278
Brake band width (mm) 50
Water Pump
Pump type Horizontal single cylinder double acting
Maximum displacement (motor) (L/min) 95 (77)
Work pressure (Mpa) 1.2
Cylinder diameter (mm) 80
Piston stroke (mm) 100
Maximum allowable pressure (Mpa) 1.2
Oil Pump
Oil pump type YBC -20/125
Nominal pressure (Mpa) 12.5
Rated flow (ml/r) 20
Rated speed (r/min) 800-1500
Power Options
Diesel engine ZS 1115
Rated power (KW) 16.2
Rated speed (r/min) 2200
Rated pressure (Mpa) 11
Motor type Y160 - 4

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

GK-180-1 Small Water Well Drilling Rig in operation
