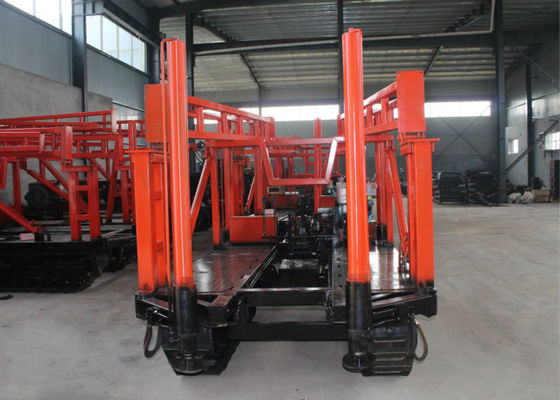

High Efficiency Mobile Water Well Drilling Rigs / Hydraulic Water Well Drilling Machine

High Efficiency Mobile Water Well Drilling Rigs / Hydraulic Water Well Drilling Machine
High Efficiency Mobile Water Well Drilling Rigs / Hydraulic Water Well Drilling Machine High Efficiency Mobile Water Well Drilling Rigs / Hydraulic Water Well Drilling Machine

Large Image :  High Efficiency Mobile Water Well Drilling Rigs / Hydraulic Water Well Drilling Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Portable Core Drilling Machine Model Numbe: XY-2
Voltage: Customized Weight: 700kg
Usage: Water Well,railways, Core Drilling Feature: High Efficiency / Multifunctional
Highlight:

rock core drilling machine

,

portable core drilling machine

 High Efficiency Mobile Water Well Drilling Rigs / Hydraulic Water Well Drilling Machine


Product Description


xy-2 is a core drilling rig for middle and shallow hole. It applies not only to alloy and diamond core drilling with different calibres but also can be used for geological prospecting works, drilling of fluid mineral in superficial layer and shot holes and ventilation holes drilling, drilling on hydrology, water wells and big calibres. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.



Technical Specifications







portable core drilling rig


Drilling capacity(m)
AQ wire-line rod 560
BQ wire-line rod 350
NQ wire-line rod 250
42 rod 530

Spindle speed(r/min)

Forward
65;114;180;248;
310;538;849;1172

Reverse
51;242

Max torque (Nm)
2760

Angle reange
0-90°

Spindle max pull force(KN)
60

Spindle stroke (mm)
600

Hoist max life capacity with single rope (KN)
30

Spindle inner dia (mm)
76

Oil pump
SCB32/12

Power unit

Electric motor
Y180L-4,22Kw

Diesel engine
395K2,19.85Kw

Inner dia of spindle (mm)
2150×900×1690


Drill body weight (excluding power)(kg)
950





application:



XY-2 hydraulic feed core drill is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydro-geological, water well and pile grouting hole drilling.



High Efficiency Mobile Water Well Drilling Rigs / Hydraulic Water Well Drilling Machine 0
