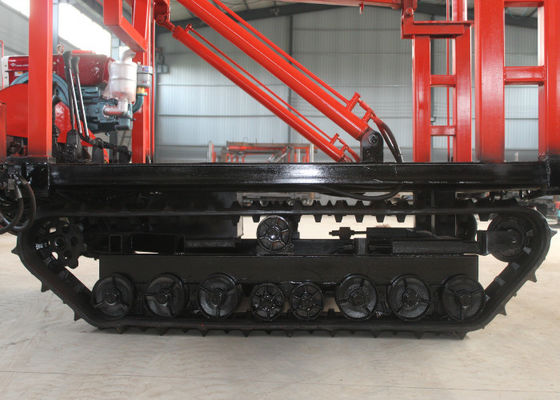

XY200 Series Hydraulic Crawler Drilling Machine For Engineering Investigation
XY-200 Engineering Drilling Rig Product Description
XY-200 Engineering Drilling Rig Suitable for industrial, civil, and geothermal drilling, it has the advantages of large drilling diameter, deep drilling depth, fast footage, flexible movement, and wide application area
XY-200 Engineering Drilling Rig Specification
| Unity machine parameter |
| Drilling depth |
200m |
| Drilling caliber |
300mm |
| Drill rod caliber |
60mm |
| Drilling angle |
90°~75 ° |
| Drill weight (No include power) |
975kg |
| Spindle |
| Spindle speed |
64 128 287 557 r/min |
| Spindle stroke |
450mm |
| Hoist |
| Max.single line hoisting capacity |
2400kg |
| Reel lifting speed |
0.41 0.82 1.64m/s |
| Tightrope caliber |
12.5mm |
| Tightrope cubic measure |
35mm |
| Hug floodgate caliber |
260mm |
| Hug floodgate belt width |
70mm |
| Distance between drill and hole |
450mm |
| Mud pump |
| Type |
Horizontal single urn twin action |
| Displacement |
170L/mim |
| Power |
| Diesel engine |
S1115 22HP |
| Electric motor |
Y160M-4 15kw 1440r/min |
| Maximum pressure |
3Mpa |
| Work pressure |
1.5Mpa |
| Water inlet caliber |
40mm |
| Water to exit caliber |
30mm |
| Triangle conveyer belt |
B1728mm |
XY-200 Engineering Drilling Rig Specifications
1. Mounted on a trailer.
2. XY-200 max. depth is 200m.
3. It can drill various soft and hard rock.
4. BV & SGS certificate.
XY-200 200m Water Well Drilling Rig
Brief Introduce
XY-200 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
XY-200 Engineering Drilling Rig Attracting features
1. Slide base: It is to make machine move when you need to adjust drilling position.
2. It has different types.
Four-wheel, two-wheel, crawler, according to your situation.
3. Different bits
Three-wing Bit, Alloy Bit, Diamond Bit. According to your Geological conditions, I can help you choose suitable bit.
4. Spare parts
We provide factory cost accessory all year round.
5. Power
Diesel engine or Electrical motor.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
