Mobile 100m Drill Rig Mining/Soil Sampling With Color Customised

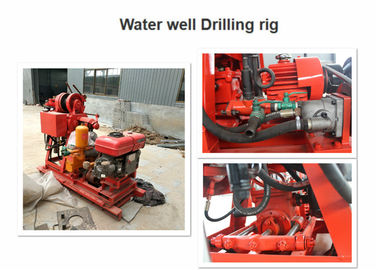

Large Image : Mobile 100m Drill Rig Mining/Soil Sampling With Color Customised

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	GK-180

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union

Contact Now

Detailed Product Description

Type:	Water Well And Core Drilling Machine	Power Type:	Diesel
Model Number:	GK-180	Usage:	Water Well,railways, Core Drilling, Physical Prospecting
Voltage:	220V/380V	Rated Pressure:	12.5Mpa
Spindle Stroke:	450mm	Displacement:	20ml/r
Color:	Customised
Highlight:	water well borehole drilling rig , water borehole drilling equipment

Mobile 100m Drill Rig Mining/Soil Sampling With Color Customisation

Product Overview

The GK-180 Mobile Water Well Drilling Rig is a versatile hydraulic core drilling machine designed for various applications including geological surveys, water well drilling, and construction projects. Featuring high power and lifting capacity, this rig offers exceptional performance in challenging environments.

Key Specifications

Attribute	Value
Type	Water well and core drilling machine
Power Type	Diesel
Model Number	GK-180
Usage	Water well, railways, core drilling, physical prospecting
Voltage	220V/380V
Rated pressure	12.5Mpa
Spindle stroke	450mm
Displacement	20ml/r
Color	Customised

Key Features

Hydraulic automatic feeding device for elevated drilling efficiency
Large torque and drilling diameter capability
Spherical jaw holding mechanism for efficient rod replacement
Compact structure with high mobility for various terrains
Variable spindle speed (71-825r/min) for different drilling requirements
Compatible with diamond, alloy, and steel roller drill bits

Technical Specifications

Drilling depth	180m
Drill rod caliber	42mm
Hole diameter	75mm
Drilling angle	90°-75°
Dimensions	2120×875×1480mm
Weight (without power unit)	750kg
Spindle speed	71, 182, 310, 790r/min
Spindle stroke	450mm
Spindle max. torque	1.5KN.m
Max. lifting capacity	20KN
Rated power	16.2KW
Rated speed	2200r/min

Applications

Ideal for geological core drilling, small hole drilling for grouting, blast holes, and water wells in various construction projects including railways, water conservancy, bridges, and dam foundations.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
