Professional Soil Small Borewell Machine For Nigeria

Large Image : Professional Soil Small Borewell Machine For Nigeria

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	GK-200

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union

Contact Now

Detailed Product Description

Product Name:	Rock Core Drilling Machine	Control::	Diesel Or Electric
Model Number::	GK-200	Open Hole Caliber:	75--300mm
Drilling Diameter:	300mm	End Diameter:	75mm
Usage:	Geological Core Drilling	Drilling Angle:	90°~75°
Highlight:	water well borehole drilling rig , hydraulic water well drilling machine

Professional Soil Small Borewell Machine For Nigeria

Product Specifications

Product Name	Rock Core Drilling Machine
Control	Diesel or Electric
Model Number	GK-200
Open Hole Caliber	75-300mm
Drilling Diameter	300mm
End Diameter	75mm
Usage	Geological Core Drilling
Drilling Angle	90°-75°

Product Description

The GK-200 mobile drilling rig is a widely used hydraulic feeding drill with powerful performance characteristics including high power output, significant lifting force (2T), and high transmission torque. Ideal for various applications including:

Engineering geological surveys for railways, hydropower, and transportation projects
Bridge and foundation construction surveys
Geological core drilling and physical exploration

Technical Parameters

Drilling Rig Specifications
Drilling diameter (mm)	75, 91, 110, 130, 150, 300
Drilling depth (m)	200, 150, 100, 70, 50, 30
Drill pipe diameter (mm)	42, 50
Drilling angle (°)	90-75
Equipment size (L×B×H) (mm)	1730 × 860 × 1360
Rig weight (except engine) (kg)	700

Power Options

Diesel Engine	1110
Rated power (KW)	16.2
Rated speed (r/min)	2200
Electric Motor	Y160M-4
Rated power (KW)	11
Rated speed (r/min)	1460

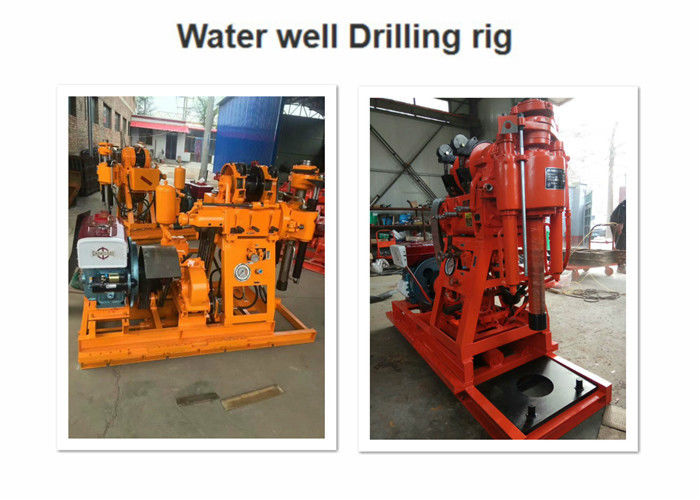

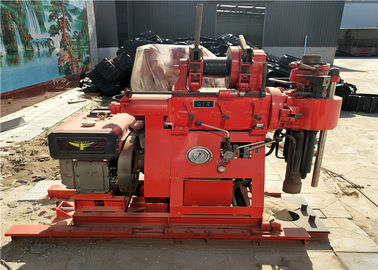

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
