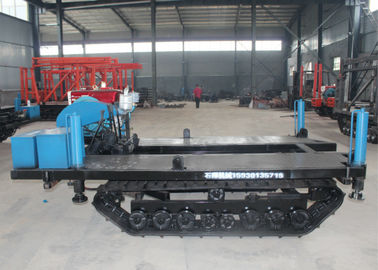

CustomizableTrack mounted chassis for hydraulic coring machine or other equipment

Large Image : CustomizableTrack mounted chassis for hydraulic coring machine or other equipment

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	CustomizableTrack mounted chassis

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden Box
Delivery Time:	Within 3-7workday
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	1000set

Contact Now

Detailed Product Description

Type:	Customizable Track Mounted Chassis	Usage:	Carrying Equipment Like Drill Rig/Air Compressor
Carrying Capacity:	According To Customer Needs	Dimension(LWH):	According To Customer Needs
Outriggers:	0.5m/1m/1.5m	Travel Mode:	Hydraulic Travel/gearbox Travel
Power:	Diesel Engine	Climbing Ability:	30
Highlight:	water borehole drilling machine , down the hole drill rig

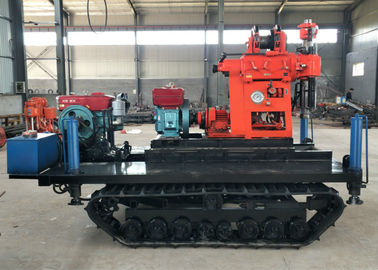

Customizable Track Mounted Chassis for Hydraulic Coring Machine or Other Equipment

Product Attributes

Attribute	Value
Type	Customizable Track mounted chassis
Usage	Carrying equipment like drill rig/Air compressor
Carrying capacity	According to customer needs
Dimension(LWH)	According to customer needs
Outriggers	0.5m/1m/1.5m
Travel mode	hydraulic travel/gearbox travel
Power	diesel engine
Climbing ability	30°

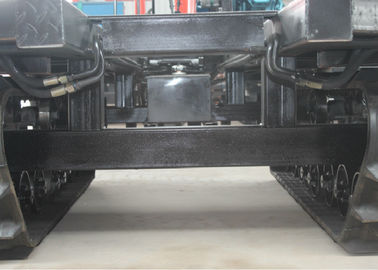

Track Crawler Chassis

We are a professional crawler chassis factory. We can customize crawler platforms of different load capacities and sizes according to customer needs. They can carry 5-100 tons of cargo or machinery. Our crawler platforms support hydraulic travel and transmission travel, and can provide high-quality solutions for global customers.

Key Features

High Adaptability: Supports customization in size, load capacity, and configuration to meet diverse project requirements.
Robust Performance: Theoretical speed of 0-10 km/h with 4-speed gearbox (3 forward, 1 reverse) and dual-range transmission (high/low speed).
Superior Terrain Capability: Climbs slopes up to 20° (ascend/descend) with a 25° side tilt angle, ideal for rough or uneven terrain.

Parameter Table

Specification	8-Track Chassis	7-Track Chassis	Tracked Platform
Number of Tracks	8	7	5
Speed	0-10 km/h (4 gears: 3F/1R)	0-10 km/h (4 gears: 3F/1R)	0-10 km/h (4 gears: 3F/1R)
Transmission	Dual-range (high/low speed)	Dual-range (high/low speed)	Dual-range (high/low speed)
Gradeability	30° ascent/descent	30° ascent/descent	30° ascent/descent
Tilt Angle	25°	25°	25°
Track Size (LWH)	3509054 mm	3509048 mm	2807246 mm
Track Contact Length	1.6 m	1.6m	1.3m
Platform Size (LWH)	3.31.850.5 m	3.21.850.5 m	2.01.5m0.5 m
Load Capacity	4 tons	3 tons	1 ton
Cylinder Stroke/Height	0.5m/1m/1.5m	0.5m/1m/1.5m	0.5 m/1m

Packaging

Waterproof wooden crates
Customized lashing points for secure transit

To make sure the offered steel crawler undercarriage is suitable for your application, please offer the following details:

Rubber or steel track undercarriage.
What is the payload of undercarriage. Note: it is the weight of machine excluding the weight of undercarriage.
Length of track undercarriage (mm).
Width of each side of track undercarriage (mm).
Height of track undercarriage (mm).
Total width of track undercarriage (mm).
Working flow rate per each side of undercarriage (L/min).
Working pressure (MPA).
Travelling speed (km/hr).
Climbing capacity.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
