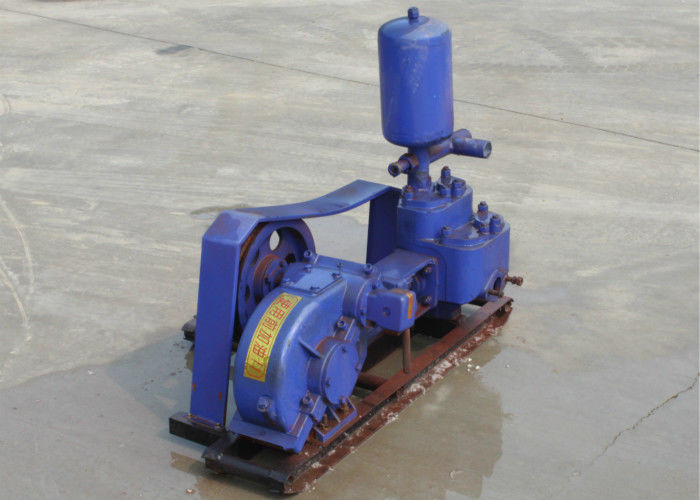

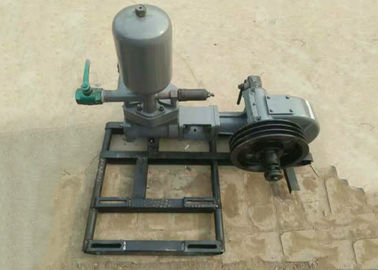

Single Acting Drilling Mud Pump BW160 Dimension For Hole Drilling

Single Acting Drilling Mud Pump BW160 Dimension For Hole Drilling
Single Acting Drilling Mud Pump BW160 Dimension For Hole Drilling
video play

Large Image :  Single Acting Drilling Mud Pump BW160 Dimension For Hole Drilling

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: BW750
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard export transportation package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 20000Set/Year
Detailed Product Description
Model Number: BW160 Type: Triplex Reciprocating Pump
Application: Hole Drilling Power Type: Diesel/Hydraulic/Electric
Material: Metal / Coil Flow: 160L/min
Pressure: 3-6Mpa Liner Diameter: 85mm 65mm
Weight: 200kgs
High Light:

portable mud pump

,

water well mud pump

Single Acting Drilling Mud Pump BW160 Dimension For Hole Drilling





BW-160 mud pump Product Introduction



Model name: BW-160 mud pump Product series: BW mud pump series
This pump has four flow rates and four pressures, with a wide range of flow rate and pressure changes. It can be used for drilling and towing with different apertures, as well as for core drilling such as rotary drilling, chemical engineering, mine drainage, and soft foundation grouting construction.



BW-160 mud pump Product parameters



Type Horizontal type single-cylinder Double-action pump
Cylinder Diameter 95 mm
Stroke 85 mm
Reciprocate Times 165 times/ minute
Displacement 160 L/min
Pressure 1.3 MPa
Volume Effiency 80%
Input Speed 951 rotations/min
Transmisiion shaft speed 5.5KW
Input pipe diameter 50mm
Output pipe diameter 40mm
Mass (including the engine) 200 kg
Dimensions 1110*725*965 mm



BW-160 mud pump Main features


1. Compact structure, light weight, small size, beautiful appearance, can be driven by hydraulic motors, motors, or diesel engines
2. Adopting new concepts in design, applying new structures, materials, and processes;



Characteristics of mud pump:



1. Can transport high concentration, high viscosity<10000PaS, and suspended slurries containing particles.

2. The conveying liquid flow is stable, without overflow, pulsation, stirring, and shearing of the slurry.

3. The discharge pressure is independent of the speed, and a low flow rate can maintain a high discharge pressure.

4. The flow rate is directly proportional to the speed, and flow regulation can be achieved through a variable speed mechanism or a speed regulating motor.

5. Strong self suction ability, can directly suck liquid without the need for a bottom valve.

6. The pump is reversible, and the direction of liquid flow is changed by the rotation direction of the pump, suitable for situations where pipelines require reverse flushing.

7. Smooth operation, low vibration and noise.

8. Simple structure, easy disassembly and maintenance.



Single Acting Drilling Mud Pump BW160 Dimension For Hole Drilling 0Single Acting Drilling Mud Pump BW160 Dimension For Hole Drilling 1Single Acting Drilling Mud Pump BW160 Dimension For Hole Drilling 2Single Acting Drilling Mud Pump BW160 Dimension For Hole Drilling 3
