XY-1A 150 Meters Drilling Machine In Mining For Exploration
Product Specifications
| Attribute |
Value |
| Product Name |
XY-1A Geological Drilling Rig Machine |
| Type |
Geological Drilling Rig Machine |
| Model Number |
XY-1A |
| Drilling depth |
150 meters |
| Power |
84kw |
| Application |
Water well drilling / core drilling |
| Drilling diameter |
150 mm |
| Power Type |
Diesel |
| OEM |
Acceptable |
| Warranty |
12 month |
Product Overview

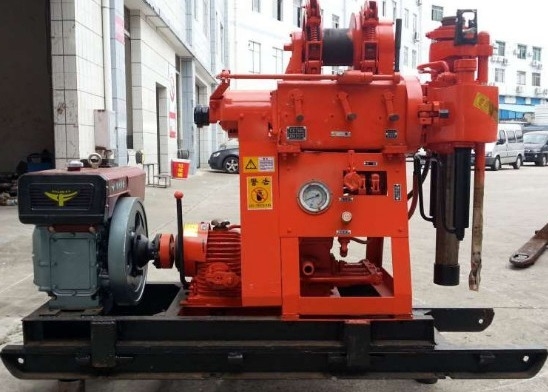

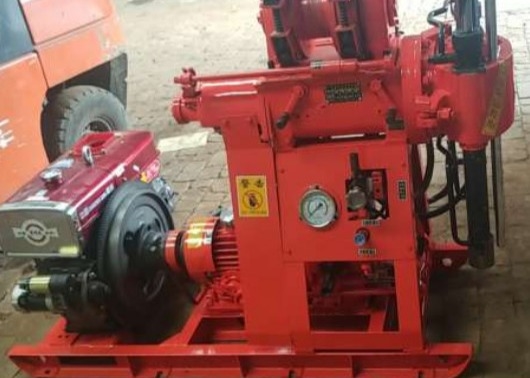

The XY-1A 150 Meters Depth Crawler Geological Drilling Rig Machine is a high-speed portable drilling rig with oil pressure feed. Designed for versatility, the drilling rig, water pump and diesel engine are installed on the same base for efficient operation. Capable of drilling through different soil and rock formations with precision, this machine is ideal for geotechnical drilling operations in challenging terrains and mining exploration.
Technical Specifications
| Drill Detail Information |
Swivel Head |
| Drilling depth |
Max.150m |
Spindle speed |
1010,790,470,295,140(r/min) |
| Hole diameter |
Max.150m |
Spindle stroke |
450kmm |
| Drill rod diameter |
42.50mm |
Spindle pull-down |
Max.15KN |
| Angle range |
90-75 |
Spindle lifting capacity |
Max. 25KN |
| Oil pump |
Water pump |
| Model |
YBC-12/125 |
Model |
Horizontal reciprocating single-acting piston pump |
| Rated pressure |
12.5Mpa |
Working pressure |
Max. 1.25Mpa |
| Flow speed |
8ml/r |
|
|
| Rated speed |
1500r/min |
|
|
| Hoist |
Power(diesel) |
| Max. lifting capacity |
15KN |
Model(diesel engine) |
1105 |
| Hoisting drum revolution |
121,76,36(r/min) |
Rated power |
18KW |
| Drum diameter |
140mm |
Rated speed |
2200r/m |
| WEIGHT |
AROUND 600KG |
SIZE |
1620*970*1560mm |
Key Features
- Oil pressure feeding mechanism improves drilling efficiency and reduces worker fatigue
- Upper ball clamp clamping mechanism and hexagonal active drill pipe allow rod reversal without stopping
- Hole bottom pressure gauge provides real-time pressure monitoring
- Centralized handle design for easy operation
- Compact structure with small volume and light weight for easy transportation
Applications
- General survey and exploration of solid deposits
- Engineering geological survey and boreholes
- Concrete structure inspection holes
- Compatible with diamond, alloy and steel bits for different geological structures
- Rated drilling depth of 100m (75mm final hole) or 180m (46mm final hole)
Drill Pipe Selection Guide
The active drill pipe transmits torque to achieve drilling and is suitable for various core drills. When selecting drill pipes, consider the raw materials and processing technology to prevent fracture, water leakage, gluing, deformation, and wear. Our drill pipes use Baosteel tube with medium frequency heating, hydraulic upsetting, and heat treatment to eliminate internal stress. Joints are made of 42CrMo, undergoing quenching, tempering, and nitriding for wear resistance and easy disassembly.
Product Images
