Economical Electric Mud Pump Well Drilling BW 250 For Submersible

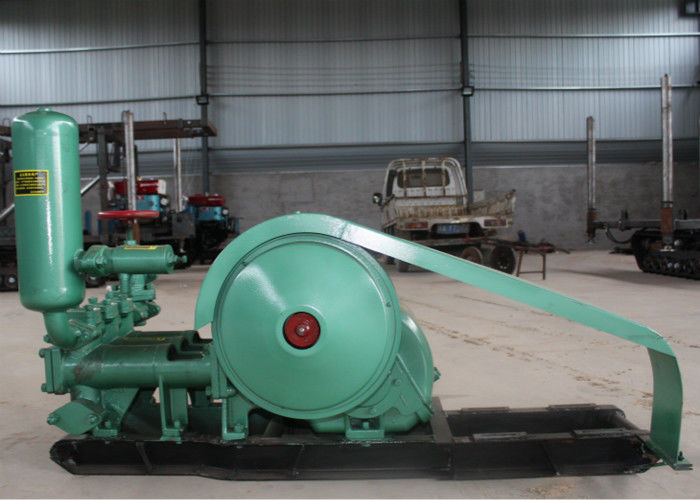

Large Image : Economical Electric Mud Pump Well Drilling BW 250 For Submersible

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	BW160 / BW200 / BW250

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export transportation package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	20000Set/Year

Contact Now

Detailed Product Description

Mud Pump Motor:	Water Well Mud Pump	Standard Or Nonstandard::	Standard
Application:	Submersible	Name:	Portable Mud Pump
Pressure:	Low Pressure	Fuel:	Electric,diesel
Highlight:	portable mud pump , water well mud pump

Economical Electric Mud Pump Well Drilling BW 250 For Submersible

Product Attributes

Attribute	Value
mud pump motor	water well mud pump
Standard or Nonstandard	Standard
Application	Submersible
name	portable mud pump
Pressure	Low Pressure
Fuel	electric, diesel

Product Description

A horizontal, triplex, single acting reciprocation piston pump with optional diesel motor power. Features simple operation and convenient remote control capability.
Compact structure with smooth operation, high output pressure, long service life, and stable performance.
Car transmission system provides six different discharge and pressure settings with configurable parameters to meet various requirements.
Primarily used for drilling fluid supply in core drilling applications up to 2000m, suitable for coal field geology, metallurgy geology, and hydrogeology.

Specifications

Model NO:	BW160	BW200	BW250
Type	horizontal single cylinder double action reciprocating piston pump	horizontal type two cylinder double action pump	horizontal triplex reciprocating single acting piston pump
cylinder diameter	95mm	80,65mm	80,65,70mm
piston stroke	85mm	85mm
frequency of stroke	165 times/min	145 times/min	200 times/min
flow rate	160 l/min	200;125 l/min	250,166,200 l/min
pressure	1.3mpa	4,6mpa	2.5,4,5,6,7mpa
power input	5.88kw	14.7kw/20hp	22kw
diameter of suction pipe	50mm	65mm	76mm
diameter of discharge pipe	40mm	37mm	51mm
overall dimensions(LWH)	1110725965mm	1050630820mm	1100995650mm
weight	200kg	300kg	760kg
