| Mud Pump Motor: | BW 160 Mud Pump | Application: | Drilling / Cool And Clear Water |
|---|---|---|---|
| Color: | Optional | Type: | Horizontal |
| Structure: | Piston Pump | Fuel: | Diesel |
| Pressure: | High Pressure | Weight: | 300Kgs |
| Highlight: | water well mud pump,reciprocating mud pump |
||

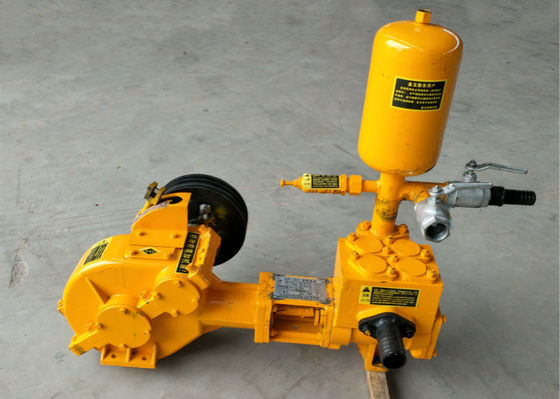

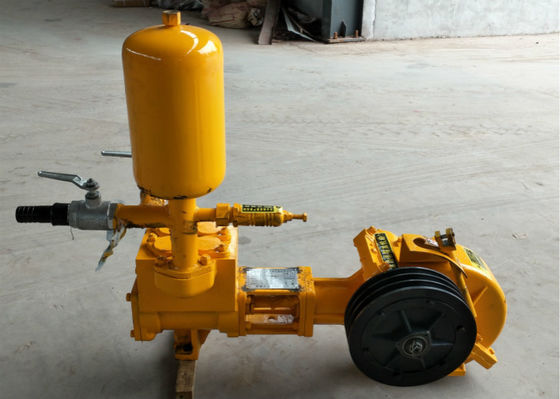

Ease Operation Small Mud Pump , Portable Mud Pump For Water Well Drilling
BW-160 mud pump brief introduction
The BW-160 mud pump is a horizontal ,three-cylinder single-acting ,reciprocal piston pump, It is mainly used to supply flushing fluid to the drilling well in engineering drill’s bedrock drilling or exploratory drilling . Its shell is A-alloy, so it is lightweight. The pump has two speed and is easily operation.
BW-160 mud pumpTechnicial parameter
| No. | Name | Technical Parameters |
| 1 | Model | BW-160 |
| 2 | Number of cylinders | 1 |
| 3 | Cylinder diameter | 95mm |
| 4 | Piston stroke | 85mm |
| 5 | Frequency | 165 time/min |
| 6 | Theoretical flow | 160 L/min |
| 7 | Rated pressure | 1.3Mpa |
| 8 | Volume efficiency | 88% |
| 9 | Belt wheel speed | 951rpm |
| 10 | Power | 5.5kw/8HP |
| 11 | Inlet inside diameter | 42mm |
| 12 | Outlet inside diameter | 32mm |
| 13 | Weight(including power) | 200kg |
| 14 | Dimension | L1110xW725xH965mm |
BW-160 mud pump Description
1. BW series cement grout injection pump is horizontal triplex grout pump with high stability and high pressure.
2. Eight gear shift to adjust the flow, large output capacity, simple operation.
3. High quality pump parts, less wearing parts, long service life, low construction cost.
4. Fast suction-discharge speed, high pump efficiency.
5. Less noise and dust, environmental operation.
Scope of use of mud pump
Multi speed variable transmission, energy saving, compact structure, light weight, high efficiency, durability, safe operation, convenient maintenance, and low maintenance costs. This type of pump is mainly used for geological drilling, geological engineering construction support, and low and medium pressure grouting pumps for foundation treatment. It has been widely used in geological, coal, construction, metallurgy, chemical, railway, water conservancy, petroleum and other industries. Grouting reinforcement is a concealed project, and the complexity of its geological conditions determines the difficulty of its construction. Therefore, it must be supported by scientific construction techniques, material formulas, and construction machinery, while also emphasizing the importance of construction experience. The successful practice of this engineering project has received guidance and supervision from relevant personnel from Party A, the design party, the supervision party, and the technical personnel of the project department.
