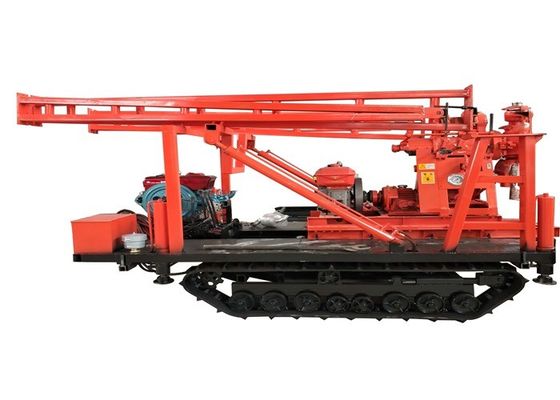

Underground Diamond Core Portable Well Drilling Rig Drill Depth 300m Diesel / Motor Power Type

Drill Depth 300m underground diamond core water well drilling rig     Drilling Rig Technical Data
Drilling diameter(mm)	75,91,110,130,150,300
Drilling depth (m)	180,150,100,70,50,30
Drill pipe diameter (mm)	42,50
Drilling angle(°)	90~75
Equipment size(L * B * H)	1750 * 780 * 1273 (mm)
Rig weight (except engine)	595
Gyrator
Spindle speed (four gear) (r/min)	71,182,310,790
Spindle maximum feed pressure(KN)	15
Spindle maximum lifting force(KN)	25
Spindle maximum output torque(KN• m)	1.5
Winch assembly
Winch maximum lifting force (single rope)	20
Reel speed (r/min)	20,39,85,170
Reel circumferential speed(m/s)	0.172,0.345,0.738,1.476
Reel diameter(mm)	140
Wire rope diameter(mm)	9.3
Wire rope density (m)	40
Brake diameter(mm)	278
Brake band width (mm)	50
Water pump
Pump type	Horizontal single cylinder double acting
Maximum displacement (motor)(L/min)	95(77)
Work pressure (Mpa)	1.2
Cylinder diameter (mm)	80
Piston stroke(mm)	100
The maximum allowable pressure (Mpa)	1.2
Oil pump
Oil pump type	YBC -20/125
Nominal pressure (Mpa)	12.5
Rated flow(ml/r)	20
Rated speed(r/min)	800-1500
Diesel engine or motor
Diesel engine	ZS 1115
Rated power (KW)	16.2
Rated speed (r/min)	2200
Rated pressure(Mpa)	11
Motor type	Y160 - 4

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
