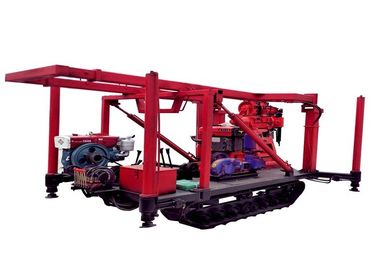

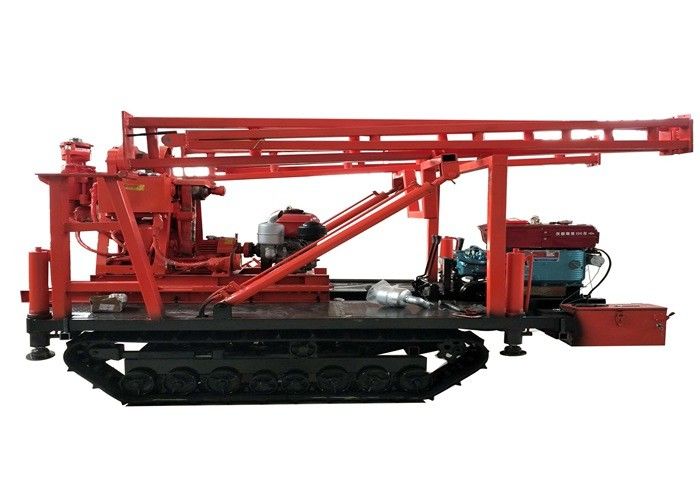

Hydraulic Tracked Mounted Water Well Drilling Rig With Single Axle Steering Brake

Hydraulic Tracked Mounted Water Well Drilling Rig With Single Axle Steering Brake
Hydraulic Tracked Mounted Water Well Drilling Rig With Single Axle Steering Brake
video play

Large Image :  Hydraulic Tracked Mounted Water Well Drilling Rig With Single Axle Steering Brake

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO
Model Number: ST-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: as required
Contact Now
Detailed Product Description
Diameter: 75-300mm Drilling Depth: 100m/200m/300m/400m
Usage: Water Well Power Type: Diesel,Electric
Voltage: Diesel Engine Driven Name: 200m Pneumatic Tractor Mounted Water Well Drilling Rig Machine Price
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service Type: Core Drilling Rig
Highlight:

water borehole drilling equipment

,

hydraulic water well drilling machine

Hydraulic Tracked Mounted geotechnical machinery borehole water well core drilling rig


Features


The Tracked Mounted  is designed to enhance the bearing capacity of gear, box body and shaft , which make the maximum power of the gearbox can output is nearly double the original product.
In the steering and braking structure, single axle steering brake replaces the original the double axle gear brake, which greatly reduces the attrition degree of wear parts.


Using wet friction brake is more reliable. The hydraulic transmission tower lifting device is safe and convenient to go up and down and easy to move the whole operation. Also it can be modified according to the customer's reasonable requirements.



Tracked Mounted



Item Figure
Theoretical velocity 10km/h
KN 10KN
Load 4500KG
Upgrade 20º
Minus grade 20º
Roll angle 20º
Ground clearance 200mm
Track width 300mm
Track gauge 1600mm
Clawler bearing length 1350mm



Advantages

1 The four feet are hydraulic support legs. Each one is controlled alone which make the platform is fixed on the ground smoothly.

2 The maximum load of the platform is 4500kg and can load XY-2 drilling rig furthest. The size of the platform is reasonable.

3 The chassis adopts rubber track, which has the advantages of lighter weight, lower life-cycle costs, and less vehicle running gear noise, less vehicle vibration, less fuel consumption. It does not hurt the pavement in the city roads.



Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

Hydraulic Tracked Mounted Water Well Drilling Rig With Single Axle Steering Brake

Hydraulic Tracked Mounted Water Well Drilling Rig With Single Axle Steering BrakeHydraulic Tracked Mounted Water Well Drilling Rig With Single Axle Steering BrakeHydraulic Tracked Mounted Water Well Drilling Rig With Single Axle Steering BrakeHydraulic Tracked Mounted Water Well Drilling Rig With Single Axle Steering Brake
