Mini Borewell Water Drilling Rig With 18 HP Engine For Personal Farming

ST-150 Water Well Drilling Rig

Mini Borewell Water Drilling Rig With 18 HP Engine For Personal Farming

diesel borehole drilling rig water borehole drilling equipment portable water well drilling rigs 150m borehole drilling machine 100 Meters Water Well Drilling Water Borehole Drilling Rig water well borehole drilling rig

Product Overview

The ST-150 Water Well Drilling Machine features a 15KN lifting capacity for handling heavy drilling rods and equipment. With Φ60mm drilling rods, this rig delivers durable performance through tough materials. Its high-performance engine and hydraulic system provide the power and precision needed for deep, straight holes up to 200 meters.

Key Features

• Rapid Deployment: Pre-assembled modules enable site readiness in under 2 hours
• Low-Cost Operation: Optimized mud recycling system reduces fluid consumption by 40%
• Robust Performance: withstands hard clay/sedimentary formations (UCS ≤80MPa)
• Operator-Friendly: Ergonomic controls with auto-locking rod system minimize labor fatigue

Technical Specifications

Parameter	Value	Description
Drilling Depth	100-200m (328 ft)	Shallow water well construction (≤100m)
Borehole Diameter	300mm (12 in)	Borehole size for high-capacity water supply
Drilling Method	Mud Circulation	Stabilizes borehole and removes cuttings
Lifting Capacity	15kN (1.5Ton)	Handles drill rods and tools during operation
Drill Rod Diameter	Φ60,76mm	API-standard thread for reliable connection
Engine Power	380V/50Hz/Optional	Industrial electrical input for stable operation
Mud Pump Flow Rate	80-120 L/min	Efficient cuttings removal for continuous drilling
Total Weight	600kg	Compact design for easy transport and deployment

Applications

The ST-150 is ideal for drinking water wells, irrigation systems, and geothermal applications. It also serves mining, construction, and oil exploration projects. Suitable for both commercial operations and personal farming needs.

Customization Options

We offer tailored solutions including design modifications, size adjustments, and drilling depth specifications. Complete equipment sets with operator training are available to ensure optimal performance of your customized rig.

Support & Services

Our comprehensive support includes technical assistance, routine maintenance, repairs, and operator training. The product comes with a warranty covering parts and labor for specified periods.

Packing & Shipping

Each rig is securely packed in wooden crates with foam padding for protection. We arrange shipping through trusted carriers with delivery times varying by location.

Frequently Asked Questions

What is the brand and model of this drilling rig?

Shitan ST-150 Water Well Drilling Rig

Where is it manufactured?

Jinzhou, Hebei Province, China

What is the minimum order quantity?

1 set

What are the delivery terms?

7 days after payment via TT or Western Union

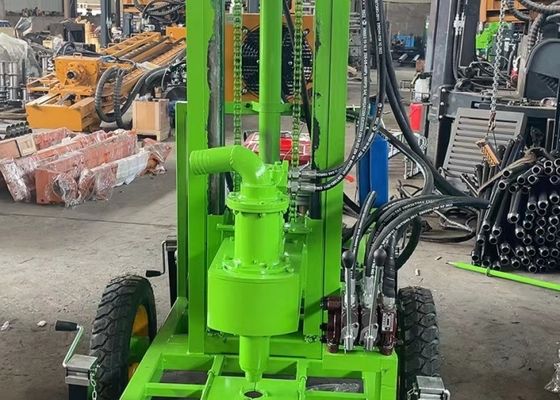

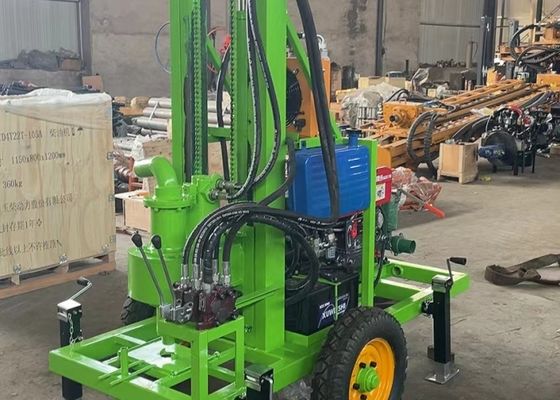

Product Images

Manufacturer Information

Jinzhou Shitan Machinery Co., Ltd. specializes in water well drilling equipment including pneumatic rigs, crawler drilling rigs, mud pumps, and related components. As a leading North China manufacturer, we maintain modern production facilities and rigorous quality control systems.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
