Deep Hydraulic Core Drilling Machine For Mining With Strong Stablebility

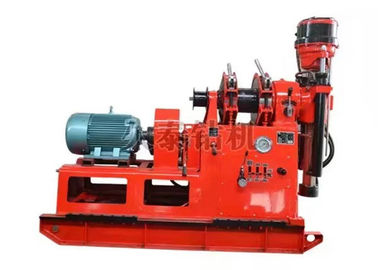

Large Image : Deep Hydraulic Core Drilling Machine For Mining With Strong Stablebility

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST-100

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD3000-USD4500/SET
Packaging Details:	Plastic film and Standard export wooden box
Payment Terms:	L/C, T/T, Western Union, , D/A ,Cash
Supply Ability:	2000 sets/year

Contact Now

Detailed Product Description

Model:	ST-100	Drilling Depth:	100M
Drill Rod Diameter:	42mm	Angle Range:	75°-90°
Diesel Engine:	12.1KW
Highlight:	water borehole drilling equipment , hydraulic water well drilling machine

Deep Hydraulic Core Drilling Machine For Mining With Strong Stability

Product Specifications

Model	ST-100
Drilling depth	100M
Drill rod diameter	42mm
Angle range	75°-90°
Diesel engine	12.1KW

Product Description

Mini Small Deep Rotary Drilling Rig is designed for geological investigation, foundation exploration, concrete structure drilling, river levees work, subgrade grouting, civil wells, and earth temperature central air-conditioner installations.

Technical Specifications

Unity Machine Parameters

Drilling depth	100m
Drill Rod diameter	42mm
Max. open hole caliber	110mm
Drilling angle	90°~75°
Drill weight (No include power)	500kg
Unity machine dimensions	164010301440

Swivel Head

Spindle speed	142/285/570r/min
Spindle stroke	450mm

Hoist

Max.single line hoisting capacity	10KN
Wire rope diameter	9.3mm
Wire rope cubic measure	27m

Mud Pump

Type	Horizontal single urn twin-action
Displacement	95L/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa

Power

Diesel engine	ZS1100------12.1KW
Electric motor	Y132M--4 7.5KW

Key Features

Standard driven drilling rod provides high rigidity and strong delivery torque
Equipped with national patent technology-taper clutch for strong transmission torque, easy operation and maintenance-free operation
Large module planetary gear and supporting frame greatly increase hoisting and braking ability
Vertical spindle located by four groups of bearings ensures rigidity for complex geological conditions
Integrated mud pump with 95L/Min flow offers cost-saving, compact structure and portability

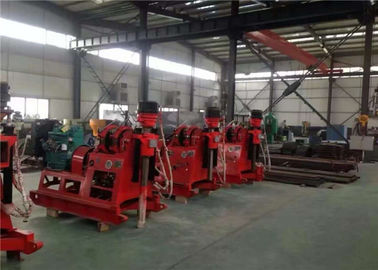

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
